产品描述

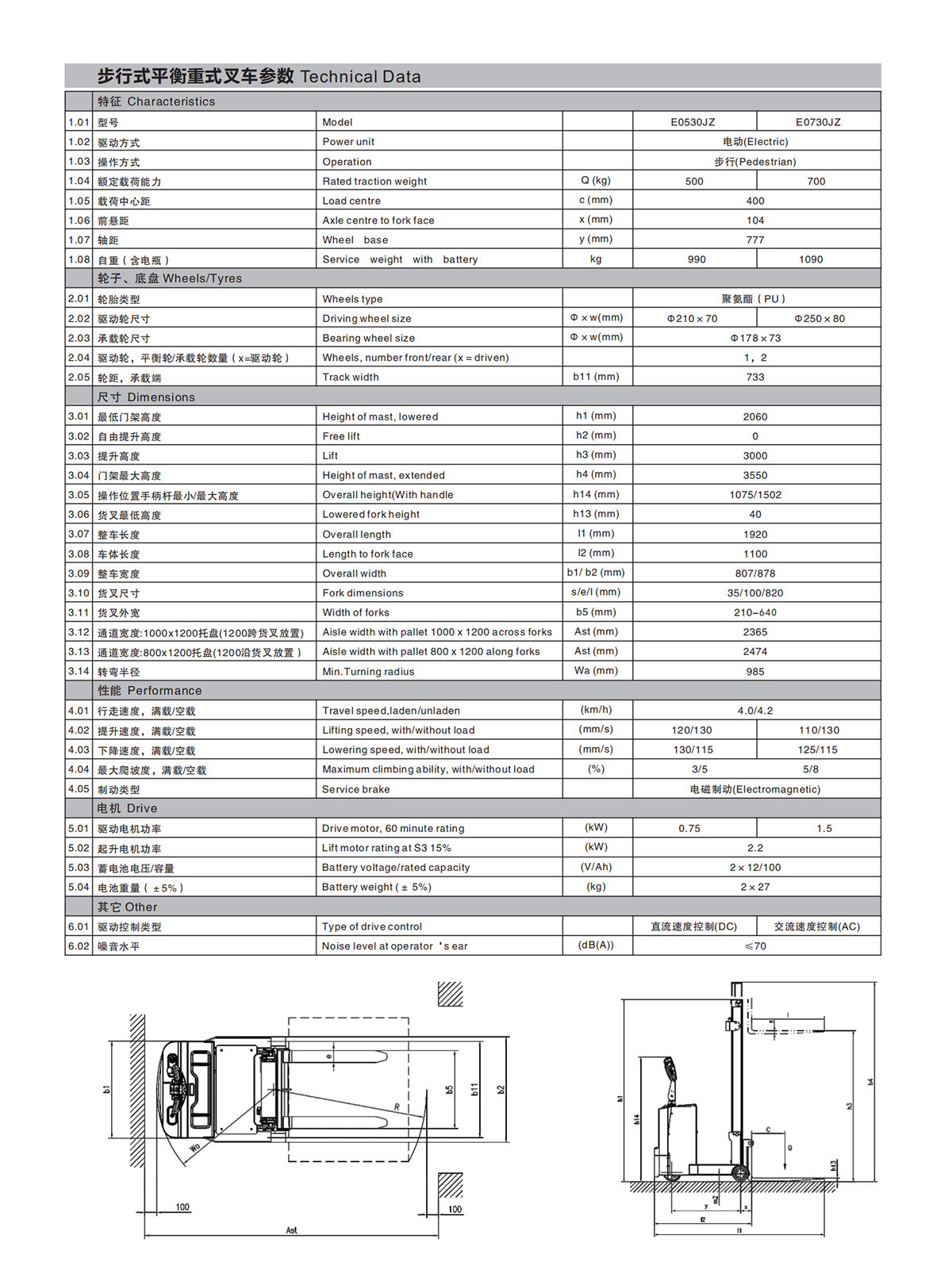

| E05-07JZ步行式平衡重叉车参数表 | |||||
| 代号 | 公制 | ||||
| 特征 distinguishing mark | |||||
| 1.1 | 品牌 | Manufacturer | 加力 | ||
| 1.2 | 型号 | Model designation | E0730JZ | ||
| 1.3 | 动力形式 | Drive unit | 电动 | ||
| 1.4 | 操作类型 | Operator type | 步行式 | ||
| 1.5 | 载荷 | rated capacity | Q | kg | 700 |
| 1.6 | 载荷中心距 | Load center distance | c | mm | 400 |
| 1.8 | 前悬距 | Axle centre to fork face | x | mm | 125 |
| 1.9 | 轴距 | Wheelbase | y | mm | 777 |
| 重量Weight | |||||
| 2.1 | 自重（含电瓶） | Service weight （include battery） | kg | 1090 | |
| 2.2 | 轴载，满载驱动端/承载端 | Axle loading, laden driving side/loading side | kg | / | |
| 2.3 | 轴载，空载驱动端/承载端 | Axle loading, unladen driving side/loading side | kg | / | |
| 轮胎 ，底盘Types,Chassis | |||||
| 3.1 | 轮胎类型，驱动轮/承载轮 | Tyre type driving wheels/loading wheels | 聚氨酯 | ||
| 3.2 | 驱动轮尺寸（直径×宽度） | Tyre size, driving wheels（diameter×width） | mm | Φ250×80 | |
| 3.3 | 承载轮尺寸（直径×宽度） | Tyre size, loading wheels（diameter×width） | mm | Φ178×73 | |
| 3.4 | 平衡轮尺寸（直径×宽度） | Tyre size, caster wheels（diameter×width） | mm | / | |
| 3.5 | 驱动轮，平衡轮/承载轮数量（x=驱动轮） | Wheels, number driving，caster/loading (x=drive wheels) | mm | 1x,0/2 | |
| 3.6 | 前轮距，驱动端 | Track width, front,driving side | b10 | mm | / |
| 3.7 | 后轮距，承载端 | Track width,rear,loading side | b11 | mm | 803 |

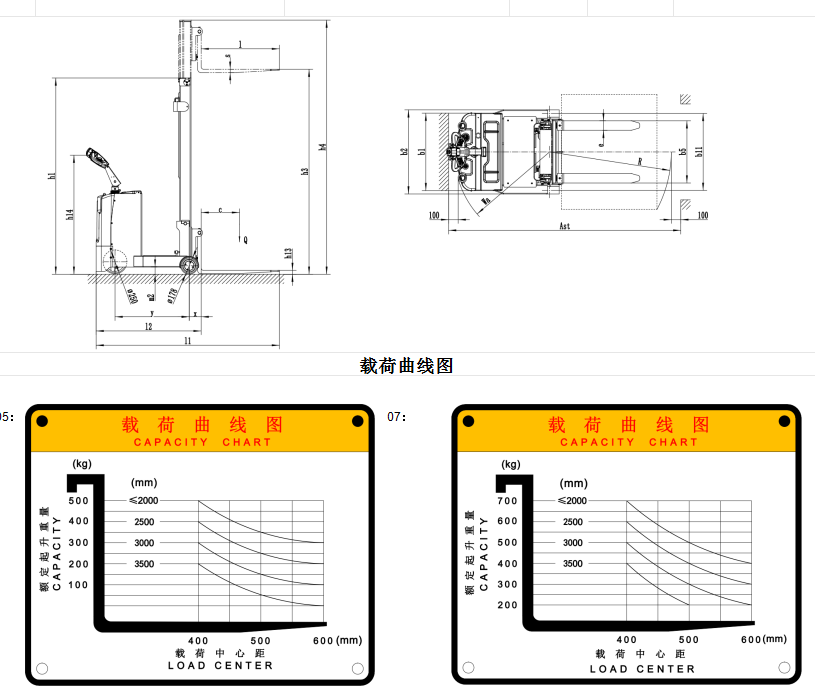

| 尺寸 Dimensions | |||||
| 4.2 | 最低门架高度 | Height of mast, lowered | h1 | mm | 2310 |
| 4.3 | 自由提升高度 | Free lift | h2 | mm | / |
| 4.4 | 标配最大起升高度 | Lift height | h3 | mm | 3000 |
| 4.9 | 操作位置手柄杆最小/最大高度 | Height drawbar in driving position min./max. | h14 | mm | 1075/1502 |
| 4.15 | 货叉下降后叉面高度 | Lowered height | h13 | mm | 40 |
| 4.19 | 整车长度 | Overall length | l1 | mm | 1920 |
| 4.20 | 到货叉垂直面的长度 | Length to face of forks | l2 | mm | 1100 |
| 4.21 | 整体宽度 | Overall width | b1/ b2 | mm | 808/878 |
| 4.22 | 货叉尺寸 | Fork dimensions | s/ e/ l | mm | 35/100/820 |
| 4.25 | 货叉外宽 | Distance between fork-arms | b5 | mm | 210-640 |
| 4.32 | 轴距中心处离地间隙 | Ground clearance, center of wheelbase | m2 | mm | 75 |
| 4.34.1 | 托盘为 1200宽 × 1000长的通道宽度 | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2470 |
| 4.34.2 | 托盘为800宽 × 1200长的通道宽度 | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 2580 |
| 4.35 | 最小转弯半径 | Turning radius | Wa | mm | 1000 |
| 性能参数 Performance data | |||||
| 5.1 | 行走速度，满载/空载 | Travel speed, laden/ unladen | km/h | 4.0/4.2 | |
| 5.2 | 起升速度，满载/空载 | Lifting speed, laden/ unladen | m/ s | 0.110/0.130 | |
| 5.3 | 下降速度，满载/空载 | Lowering speed, laden/ unladen | m/ s | 0.125/0.115 | |
| 5.8 | 最大爬坡度，满载/空载 | Max. gradeability, laden/unladen | 5/8 | ||
| 5.9 | 加速时间,满载/空载 | Acceleration time with/without load | |||
| 5.10 | 制动类型 | Service brake type | Electromagnetic | ||
| 电机，动力源 Electric-engine | |||||
| 6.1 | 驱动电机额定功率 S2 60分钟 | Drive motor rating S2 60 min | kW | 1.5 | |
| 6.2 | 起升电机额定功率 S3 15% | Lift motor rating at S3 15% | kW | 2.2 | |
| 6.3 | 电瓶允许最大尺寸 | The maximum allowed size battery | mm | 260×169×215 | |
| 6.4 | 电瓶电压/标称容量 K5 | Battery voltage/nominal capacity K5 | 2x12V/100AH | ||
| 6.5 | 电瓶重量 | Battery weight | kg | 2×27 | |
| 6.6 | 能耗 ，根据VDI循环 | Energy consumption acc. to VDI cycle | kW/h | ||
| 其他数据 Addition data | |||||
| 8.1 | 驱动控制类型 | Type of drive control | AC | ||
| 8.2 | 转向类型 | Steering type | 机械转向 | ||
| 8.3 | 噪音等级 | Sound pressure level at the driver’s ear | dB(A) | ≤70 | |
