产品描述

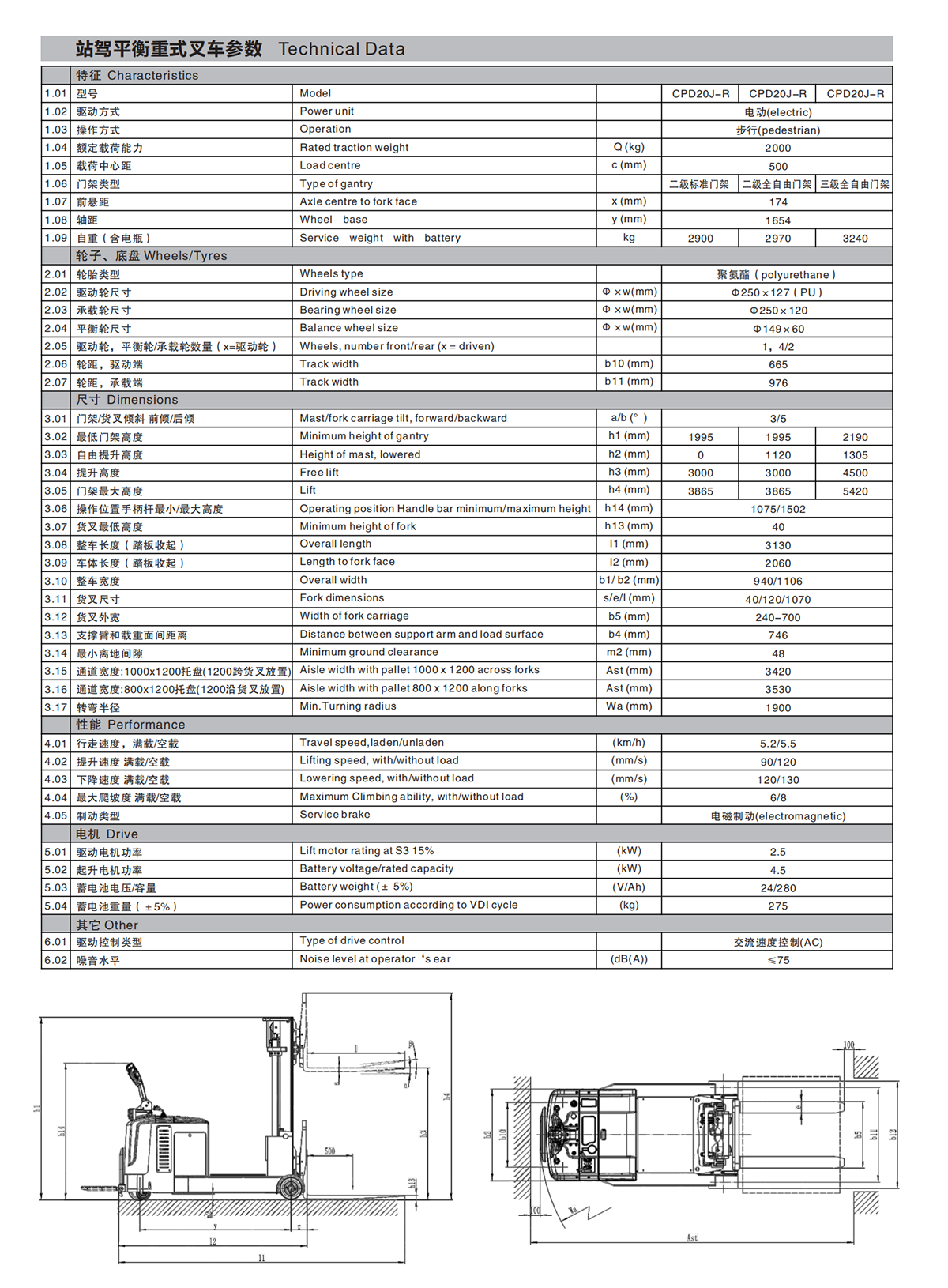

| CPD20J-R电动平衡重式叉车参数表 | |||||||||||||
| 特征 distinguishing mark | |||||||||||||
| 1.1 | 制造商 | Manufacturer | 加力(JIALIFT) | 加力(JIALIFT) | 加力(JIALIFT) | ||||||||
| 1.2 | 型号 | Manufacturer's type designation | CPD20J-R | CPD20J-R | CPD20J-R | ||||||||
| 1.3 | 驱动方式 | Drive | 电动(electric) | 电动(electric) | 电动(electric) | ||||||||
| 1.4 | 驾驶方式 | Operator type | 步行(pedestrian) | 步行(pedestrian) | 步行(pedestrian) | ||||||||
| 1.5 | 额定载荷 | Load capacity | Q (kg) | 2000 | 2000 | 2000 | |||||||
| 1.6 | 载荷中心距 | Load center distance | c (mm) | 500 | 500 | 500 | |||||||
| 1.7 | 前悬距 | centre of drive axle to fork | x (mm) | 174 | 174 | 174 | |||||||
| 1.8 | 轴距 | Wheelbase | y (mm) | 1654 | 1654 | 1654 | |||||||
| 重量Weight | |||||||||||||
| 2.1 | 自重（含电瓶） | Service weight （include battery） | kg | 2580 | 2970 | 3240 | |||||||
| 2.2 | 轴负载，满载时前/后轴 | Axle loading,laden front/rear | kg | 3981/599 | 4324/646 | 4559/681 | |||||||
| 2.3 | 轴负载，空载时前/后轴 | Axle loading,unladen front/rear | kg | 1185/1395 | 1365/1605 | 1520/1720 | |||||||
| 轮胎 ，底盘Types,Chassis | |||||||||||||
| 3.1 | 轮子类型，驱动轮/承载轮 | Tyre type driving wheels/loading wheels | 聚氨酯（polyurethane） | 聚氨酯（polyurethane） | 聚氨酯（polyurethane） | ||||||||
| 3.2 | 轮子尺寸，前轮（直径×宽度） | Tyre size,front（diameter×width） | Φ×w(mm) | Φ250×120 | Φ250×120 | Φ250×120 | |||||||
| 3.3 | 驱动轮尺寸 | Tyre size ，rear（diameter×width） | Φ×w(mm) | Φ250×127（PU） | Φ250×127（PU） | Φ250×127（PU） | |||||||
| 3.4 | 驱动轮，平衡轮/承载轮数量（x=驱动轮） | Wheels, number driving，caster/loading (x=drive wheels) | 1，4/2 | 1，4/2 | 1，4/2 | ||||||||
| 3.5 | 轮距，承载端 | Tread,front | b11 (mm) | 976 | 976 | 976 | |||||||
| 3.6 | 轮距，驱动端 | Thread,rear | b10 (mm) | 0 | 0 | 0 | |||||||
| 尺寸 Dimensions | |||||||||||||
| 4.1 | 门架/货叉倾斜 前倾/后倾 | Mast/fork carriage tilt, forward/backward | a/b (°) | 3/5 | 3/5 | 3/5 | |||||||
| 4.2 | 门架缩回时高度 | Height,mast lowered | h1 (mm) | 1995 | 2245 | 2495 | 2190 | 2357 | 2524 | 2690 | 1995 | 2245 | 2495 |
| 4.3 | 自由提升高度 | Free lift | h2 (mm) | 0 | 0 | 0 | 1305 | 1470 | 1639 | 1805 | 1120 | 1370 | 1620 |
| 4.4 | 提升高度 | Lift height | h3 (mm) | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 | 3000 | 3500 | 4000 |
| 4.5 | 作业时门架最大高度 | Maximum height of gantry | h4 (mm) | 3865 | 4365 | 4865 | 5420 | 5920 | 6420 | 6920 | 3865 | 4365 | 4865 |
| 4.6 | 货叉下降后叉面高度 | Lowered height | h13 (mm) | 40 | 40 | 40 | |||||||
| 4.7 | 站立高度 | stand height | h7 (mm) | 145 | 145 | 145 | |||||||
| 4.8 | 操作位置手柄杆最小/最大高度 | Height of tiller in drive position min./max. | h14 (mm) | 1075/1502 | 1075/1502 | 1075/1502 | |||||||
| 4.9 | 整车长度 | Overall length | l1 (mm) | 3130 | 3130 | 3130 | |||||||
| 4.10 | 到货叉垂直面的长度 | Length to face of forks | l2 (mm) | 2060 | 2060 | 2060 | |||||||
| 4.11 | 整车宽度 | Overall width | b1/ b2 (mm) | 940/1106 | 940/1106 | 940/1106 | |||||||
| 4.12 | 货叉尺寸 | Fork dimensions | s/e/l (mm) | 40/120/1070 | 40/120/1070 | 40/120/1070 | |||||||
| 4.13 | 货叉外宽 | Distance between fork-arms | b5 (mm) | 240-700 | 240-700 | 240-700 | |||||||
| 4.14 | 轴距中心处离地间隙 | Ground clearance, center of wheelbase | m2 (mm) | 48 | 48 | 48 | |||||||
| 4.15 | 通道宽度：1000x1200托盘（1200跨货叉放置） | Aisle width for pallets 1000 × 1200 crossways | Ast (mm) | 3420 | 3420 | 3420 | |||||||
| 4.16 | 通道宽度：800x1200托盘（1200沿货叉放置） | Aisle width for pallets 800 × 1200 lengthways | Ast (mm) | 3530 | 3530 | 3530 | |||||||
| 4.17 | 转弯半径 | Turning radius | Wa (mm) | 1900 | 1900 | 1900 | |||||||
| 性能参数 Performance data | |||||||||||||
| 5.1 | 行走速度，满载/空载 | Travel speed, laden/ unladen | (km/h) | 5.2/5.5 | 5.2/5.5 | 5.2/5.5 | |||||||
| 5.2 | 提升速度 满载/空载 | Lifting speed, laden/ unladen | (mm/s) | 90/120 | 90/120 | 90/120 | |||||||
| 5.3 | 下降速度 满载/空载 | Lowering speed, laden/ unladen | (mm/s) | 120/130 | 120/130 | 120/130 | |||||||
| 5.4 | 最大爬坡度 满载/空载 | Max. gradeability, laden/unladen | (%) | 6/8 | 6/8 | 6/8 | |||||||
| 5.5 | 制动类型 | Service brake type | 电磁制动(electromagnetic) | 电磁制动(electromagnetic) | 电磁制动(electromagnetic) | ||||||||
| 电机，动力源 Electric-engine | |||||||||||||
| 6.1 | 驱动电机额定功率 S2 60分钟 | Drive motor rating S2 60 min | (kW) | 3.0 | 3.0 | 3.0 | |||||||
| 6.2 | 起升电机额定功率 S3 15% | Lift motor rating at S3 15% | (kW) | 4.5 | 4.5 | 4.5 | |||||||
| 6.3 | 蓄电池，根据DIN 43531/35/36 A,B,C,no | Battery acc. To DIN 43531/35/36 A.B.C,no | no | no | no | ||||||||
| 6.4 | 电瓶电压/标称容量 K5 | Battery voltage/nominal capacity K5 | (V/Ah) | 24/280 | 24/280 | 24/280 | |||||||
| 6.5 | 电瓶重量 | Battery weight | (kg) | 275 | 275 | 275 | |||||||
| 其他数据 Addition data | |||||||||||||
| 8.1 | 驱动控制类型 | Type of drive control | 交流速度控制 | 交流速度控制 | 交流速度控制 | ||||||||
| 8.2 | 噪音水平 | Sound pressure level at the driver’s ear | (dB(A)) | ≤75 | ≤75 | ≤75 | |||||||
