产品描述

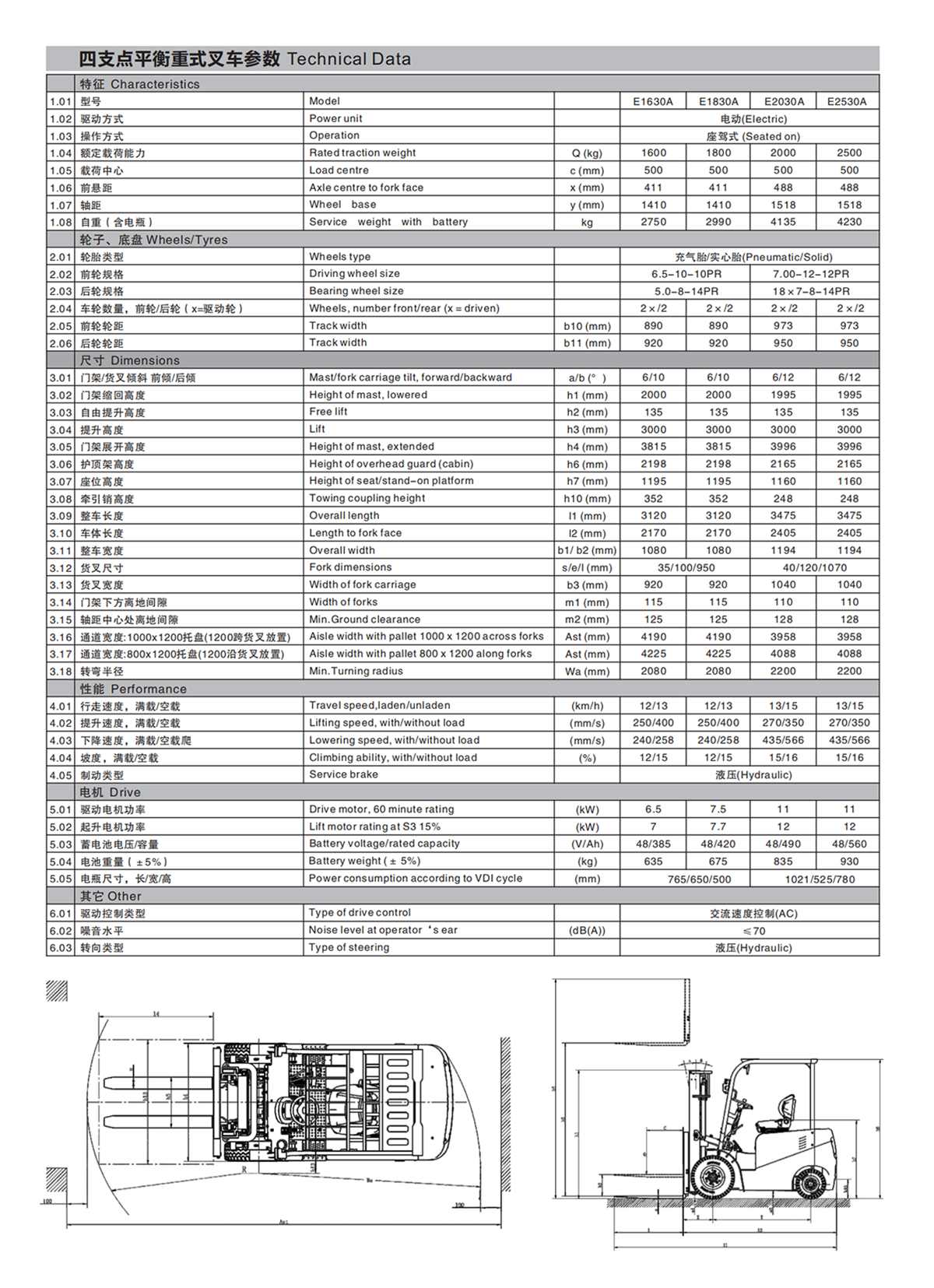

| 四支点平衡重式叉车参数Technical Data | |||||||
| 特征Characteristics | |||||||
| 1.01 | 型号 | Model | E1630A | E1830A | E2030A | E2530A | |
| 1.02 | 驱动方式 | Power unit | Electric | ||||
| 1.03 | 操作方式 | Operation | Seated on | ||||
| 1.04 | 额定载荷能力 | Rated traction weight | Q(kg) | 1600 | 1800 | 2000 | 2500 |
| 1.05 | 载荷中心 | Load centre | c(mm) | 500 | 500 | 500 | 500 |
| 1.06 | 前悬距 | Axle centre to fork face | x(mm) | 411 | 411 | 488 | 488 |
| 1.07 | 轴距 | Wheel base | y(mm) | 1410 | 1410 | 1518 | 1518 |
| 1.08 | 自重(含电瓶) | Service weight with battery | kg | 2750 | 2990 | 4135 | 4230 |
| 轮子、底盘Wheels/Tyres | |||||||
| 2.01 | 轮胎类型 | Wheels type | Pneumatic/Solid | ||||
| 2.02 | 前轮规格 | Driving wheel size | 6.5-10-10PR | 7.00-12-12PR | |||
| 2.03 | 后轮规格 | Bearing wheel size | 5.0-8-14PR | 18×7-8-14PR | |||
| 2.04 | 车轮数量，前轮/后轮(x=驱动轮) | Wheels,number front/rear (x = driven) | 2×/2 | 2×/2 | 2×/2 | 2×/2 | |
| 2.05 | 前轮轮距 | Track width | b10(mm) | 890 | 890 | 973 | 973 |
| 2.06 | 后轮轮距 | Track width | b11(mm) | 920 | 920 | 950 | 950 |

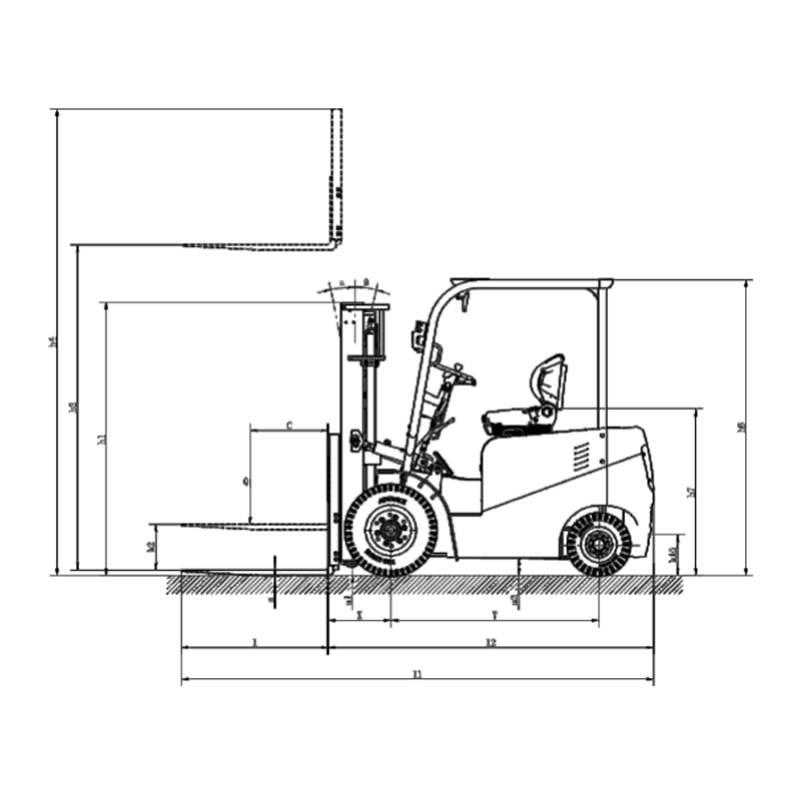

| 尺寸Dimensions | |||||||
| 3.01 | 门架/货叉倾斜 前倾/后倾 | Mast/fork carriage tilt, forward/backward | a/b(°) | 6/10 | 6/10 | 6/12 | 6/12 |
| 3.02 | 门架缩回高度 | Height of mast, lowered | h1(mm) | 2000 | 2000 | 1995 | 1995 |
| 3.03 | 自由提升高度 | Free lift | h2(mm) | 135 | 135 | 135 | 135 |
| 3.04 | 提升高度 | Lift | h3(mm) | 3000 | 3000 | 3000 | 3000 |
| 3.05 | 门架展开高度 | Height of mast, extended | h4(mm) | 3815 | 3815 | 3996 | 3996 |
| 3.06 | 护顶架高度 | Height of overhead guard (cabin) | h6(mm) | 2198 | 2198 | 2165 | 2165 |
| 3.07 | 座位高度 | Height of seat/stand-on platform | h7(mm) | 1195 | 1195 | 1160 | 1160 |
| 3.08 | 牵引销高度 | Towing coupling height | h10(mm) | 352 | 352 | 248 | 248 |
| 3.09 | 整车长度 | Overall length | l1(mm) | 3120 | 3120 | 3475 | 3475 |
| 3.10 | 车体长度 | Length to fork face | l2(mm) | 2170 | 2170 | 2405 | 2405 |
| 3.11 | 整车宽度 | Overall width | b1/b2(mm) | 1080 | 1080 | 1194 | 1194 |
| 3.12 | 货叉尺寸 | Fork dimensions | s/e/l(mm) | 35/100/950 | 40/120/1070 | ||
| 3.13 | 货叉宽度 | Width of fork carriage | b3(mm) | 920 | 920 | 1040 | 1040 |
| 3.14 | 门架下方离地间隙 | Width of forks | m1(mm) | 115 | 115 | 110 | 110 |
| 3.15 | 轴距中心处离地间隙 | Min.Ground clearance | m2(mm) | 125 | 125 | 128 | 128 |

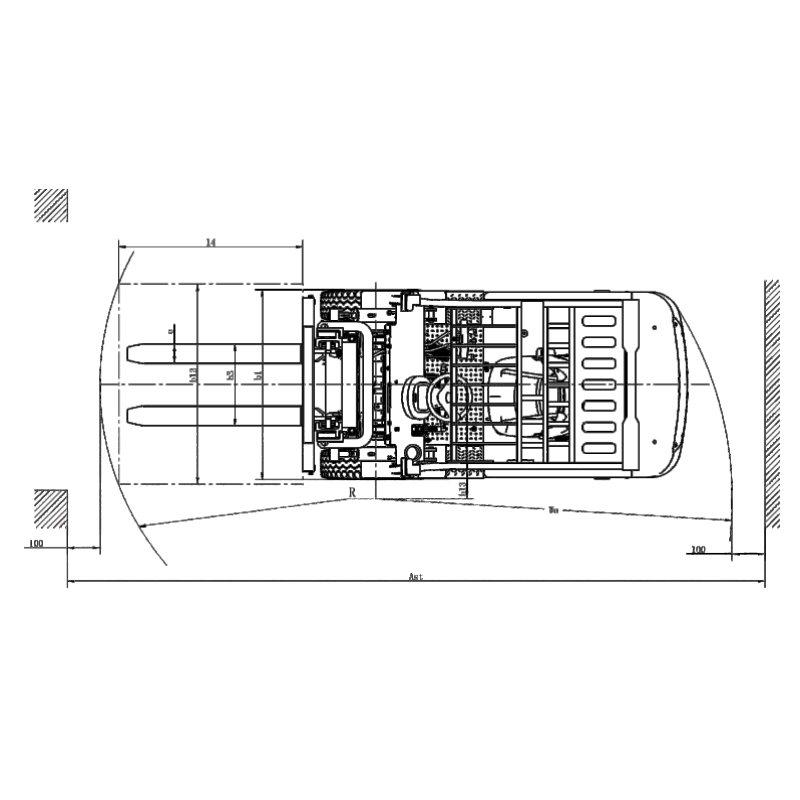

| 3.16 | 通道宽度：1000x1200托盘(1200跨货叉放置) | Aisle width with pallet 1000 x 1200 across forks | Ast(mm) | 4190 | 4190 | 3958 | 3958 |
| 3.17 | 通道宽度：800x1200托盘(1200沿货叉放置) | Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 4225 | 4225 | 4088 | 4088 |
| 3.18 | 转弯半径 | Min. Turning radius | Wa(mm) | 2080 | 2080 | 2200 | 2200 |
| 性能Performance | |||||||
| 4.01 | 行走速度，满载/空载 | Travel speed,laden/unladen | (km/h) | 12/13 | 12/13 | 13/15 | 13/15 |
| 4.02 | 提升速度，满载/空载 | Lifting speed, with/without load | (mm/s) | 250/400 | 250/400 | 270/350 | 270/350 |
| 4.03 | 下降速度，满载/空载 | Lowering speed, with/without load | (mm/s) | 240/258 | 240/258 | 435/566 | 435/566 |
| 4.04 | 爬坡度，满载/空载 | Climbing ability, with/without load | (%) | 12/15 | 12/15 | 15/16 | 15/16 |
| 4.05 | 制动类型 | Service brake | Hydraulic | ||||
| 电机Drive | |||||||
| 5.01 | 驱动电机功率 | Drive motor,60 minute rating | (kW) | 6.5 | 7.5 | 11 | 11 |
| 5.02 | 起升电机功率 | Lift motor rating at S315% | (kW) | 7 | 7.7 | 12 | 12 |
| 5.03 | 蓄电池电压/容量 | Battery voltage/rated capacity | (V/Ah) | 48/385 | 48/420 | 48/490 | 48/560 |
| 5.04 | 电池重量(±5%) | Battery weight(± 5%) | (kg) | 635 | 675 | 835 | 930 |
| 5.05 | 电瓶尺寸，长/宽/高 | Power consumption according to VDI cycle | (mm) | 765/650/500 | 1021/525/780 | ||
| 其它Other | |||||||
| 6.01 | 驱动控制类型 | Type of drive control | AC | ||||
| 6.02 | 噪音水平 | Noise level at operator 's ear | (dB(A)) | ≤70 | |||
| 6.03 | 转向类型 | Type of steering | Hydraulic | ||||
