产品描述
| 牵引车(步行式)参数Technical Data | ||||
| 特征Characteristics | ||||

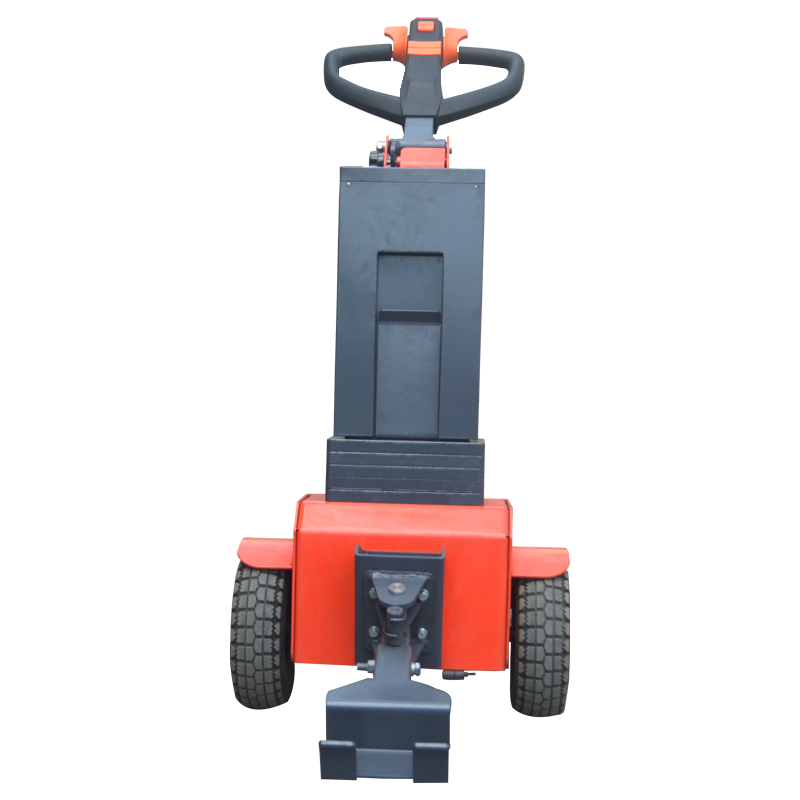

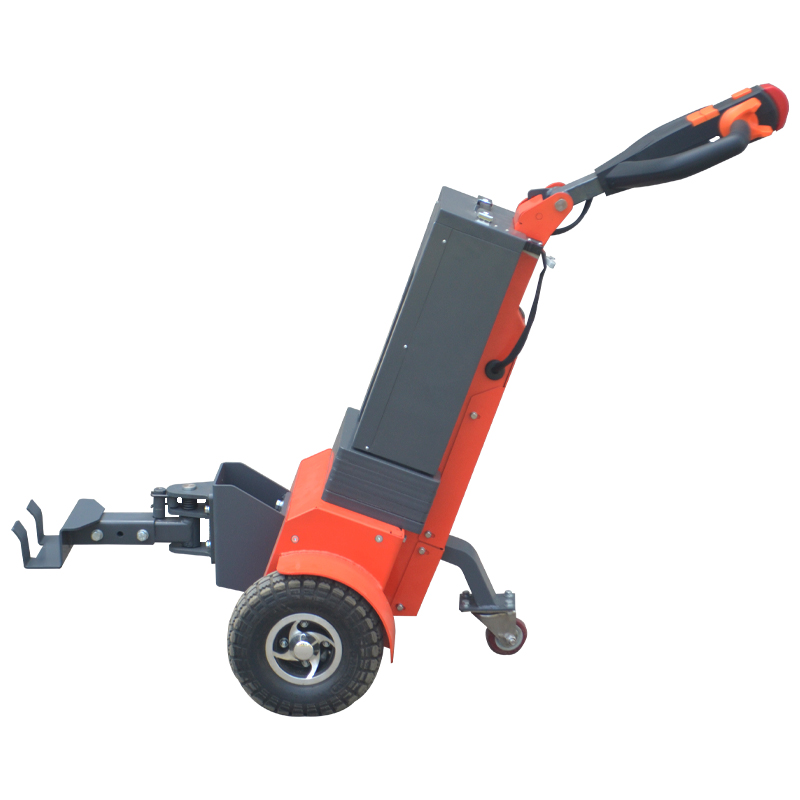

| 1.01 | 型号 | Model | TW10 | |
| 1.02 | 驱动方式 | Power unit | 电动(electrie | |
| 1.03 | 操作方式 | Operation | 步行式(Pedestrian) | |
| 1.04 | 额定载荷 | Rated traction weight | Q(kg) | 1000 |
| 1.05 | 额定牵引力 | Rated pulling power | F(N) | 200 |
| 1.06 | 轴距 | Wheel base | y(mm) | 321 |
| 1.07 | 白重(含电瓶) | Service weight with battery | kg | 116 |
| 轮子、底盘Wheels/Tyres | ||||
| 2.01 | 轮胎类型 | Wheels type | 橡胶轮(Rubber wheel) | |
| 2.02 | 驱动轮尺寸 | Driving wheel size | φxw(mm) | φ254×85 |

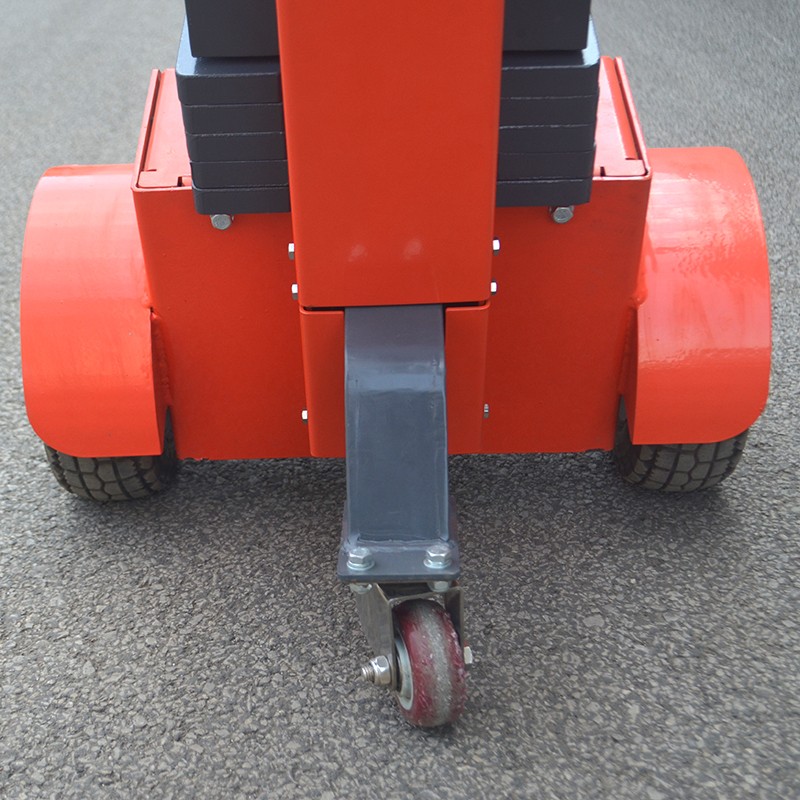

| 2.03 | 承截轮尺寸 | Bearing wheel size | φxw(mm) | 475x32 |
| 2.04 | 前轮距 | Before the wheel track | b10(mm) | 441 |
| 尺寸Dimensions | ||||

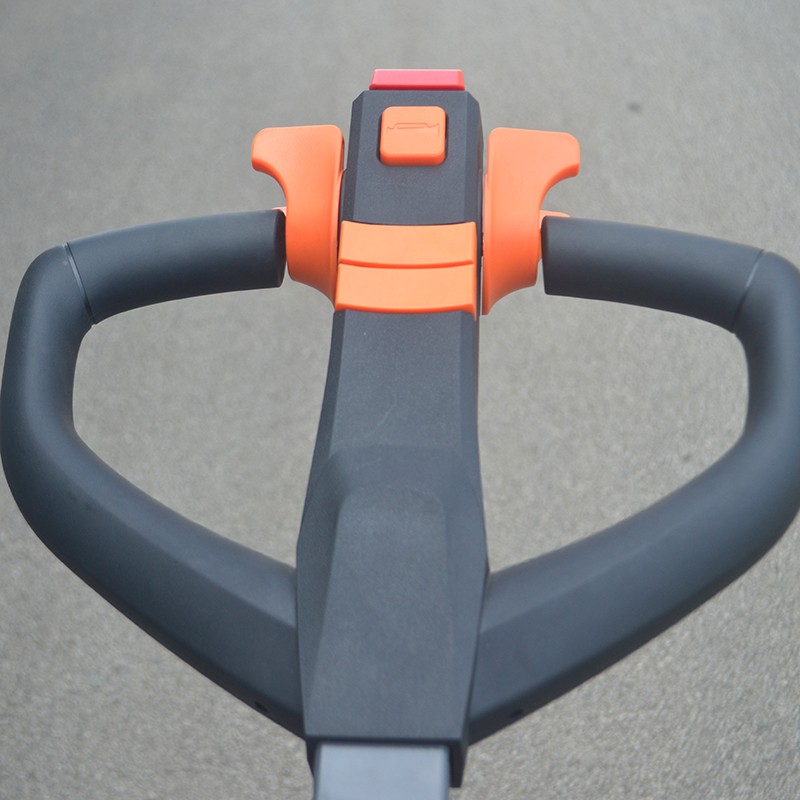

| 3.01 | 操作位置子柄杆最小最大高度 | Overall height(With handle | h14(mm) | 912/1155 |

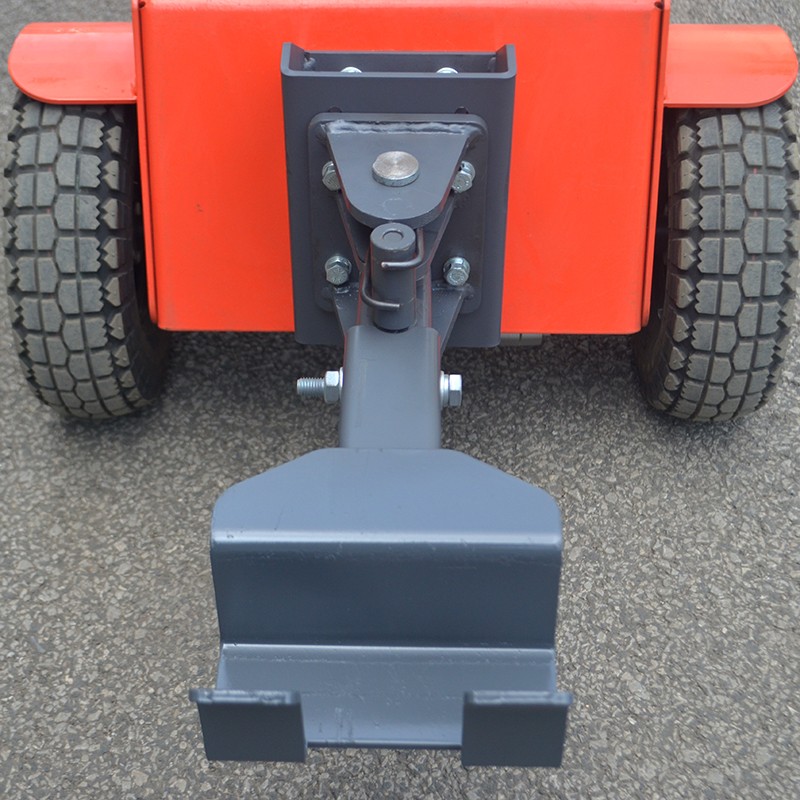

| 3.02 | 率引销中心离地高度 | Coupler height | h10(mm) | 275/310/34 |
| 3.03 | 整车长度 | Overall length | 11(mm) | 1184 |
| 3.04 | 整车宽度 | Overall widlth | b1/b2 (mm) | 526 |
| 3.05 | 轴距中心离地间隙 | Min.Ground clearance | m2(mm) | 67 |
| 3.06 | 转弯半径 | Min.Turning radius | Wa(mm) | 850/902/916 |
| 性能Performance | ||||
| 4.01 | 行走速度，满载/空载 | Travel speed,laden/unladen | (km/h) | 3.8/4.2 |
| 4.02 | 额定牵引力 | Rated pulling power | N | 200 |
| 4.03 | 最大牵引力 | Max,pulling power | N | 600 |
| 4.04 | 坡度，满载/空载 | Gradeability laden/unladen | % | 3/10 |
| 4.05 | 制动类型 | Brake | 电磁制动(Electromagnetic) | |
| 电机Drive | ||||
| 5.01 | 驱动电机功率 | Drive motor | (kW) | 0.4 |
| 5.02 | 蓄电池电压/容量 | Battery voltage/Battery capacity | (V/Ah) | 24/32 |
| 5.03 | 电池重量(±5%) | Battery weight (±5%) | (kg) | 19.6 |
| 其它Other | ||||
| 6.01 | 赵动控制类型 | Type of drive control | 交流速度控制(AC) | |
| 6.02 | 噪音水平 | Nolse level at operator 'sear | (dB(A)) | ≤70 |
