产品描述

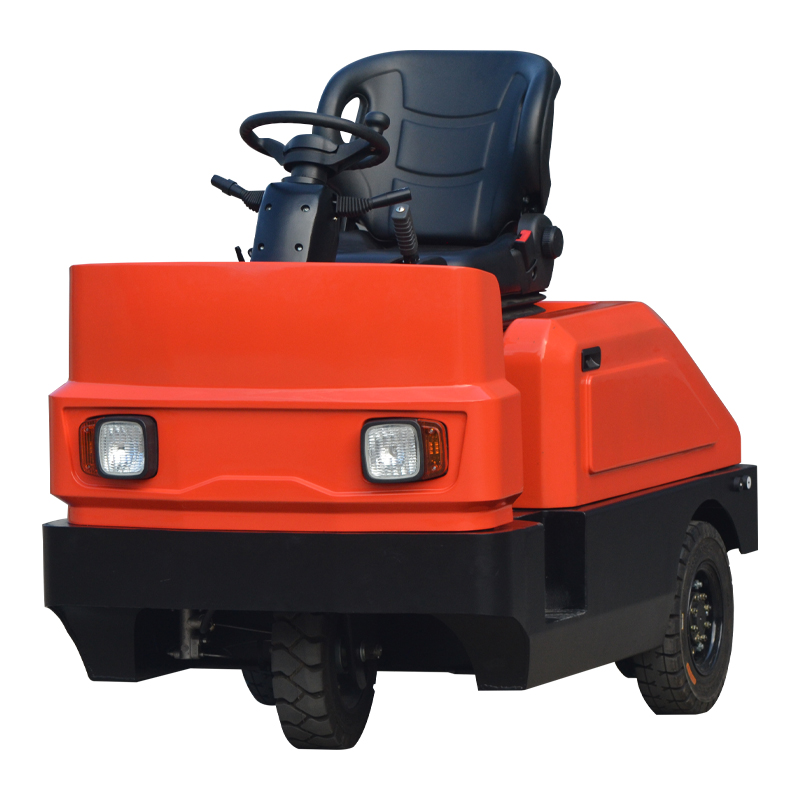

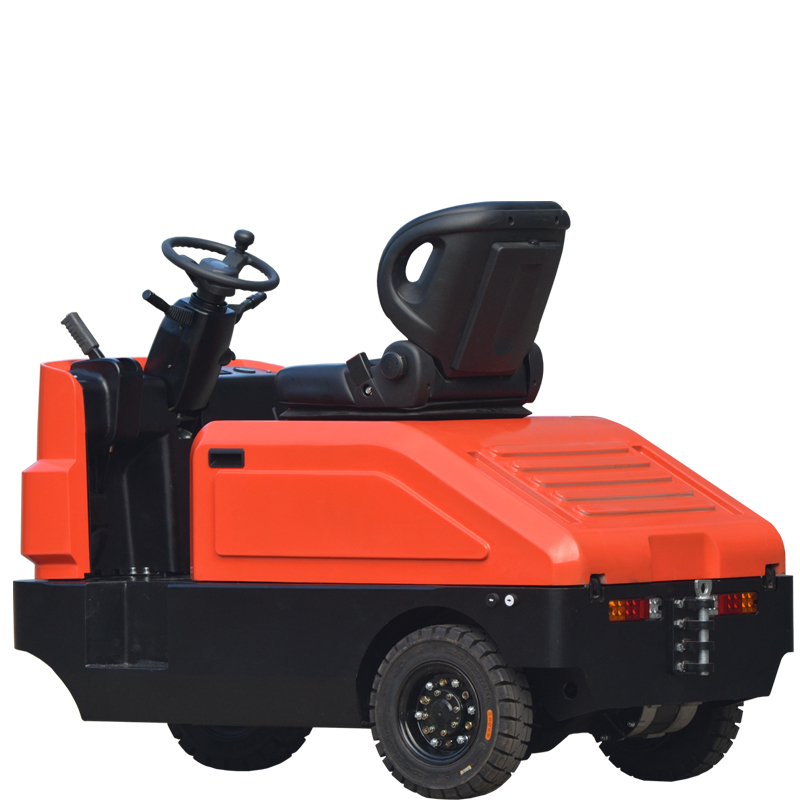

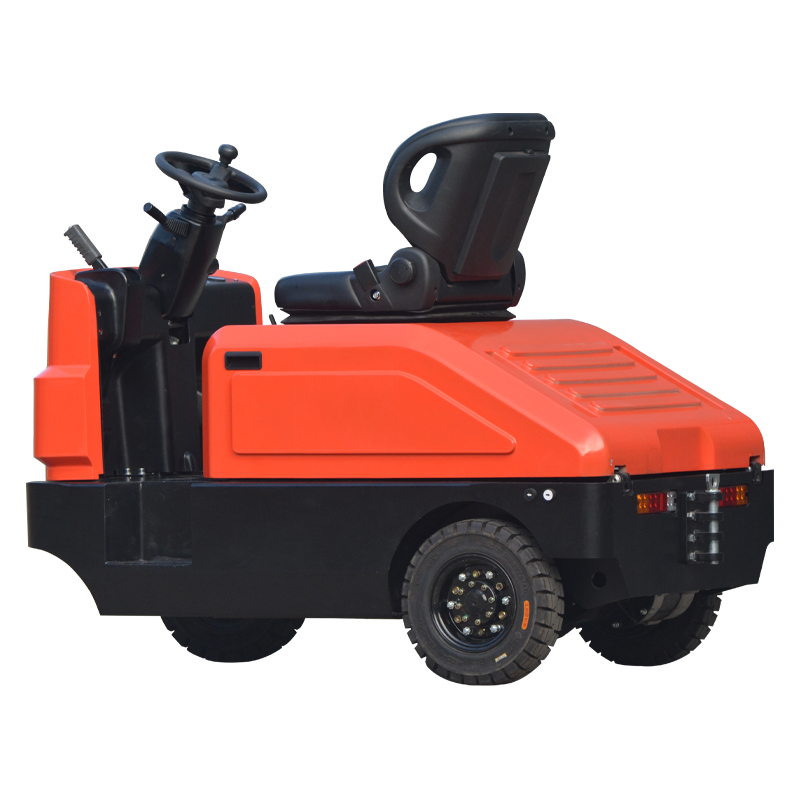

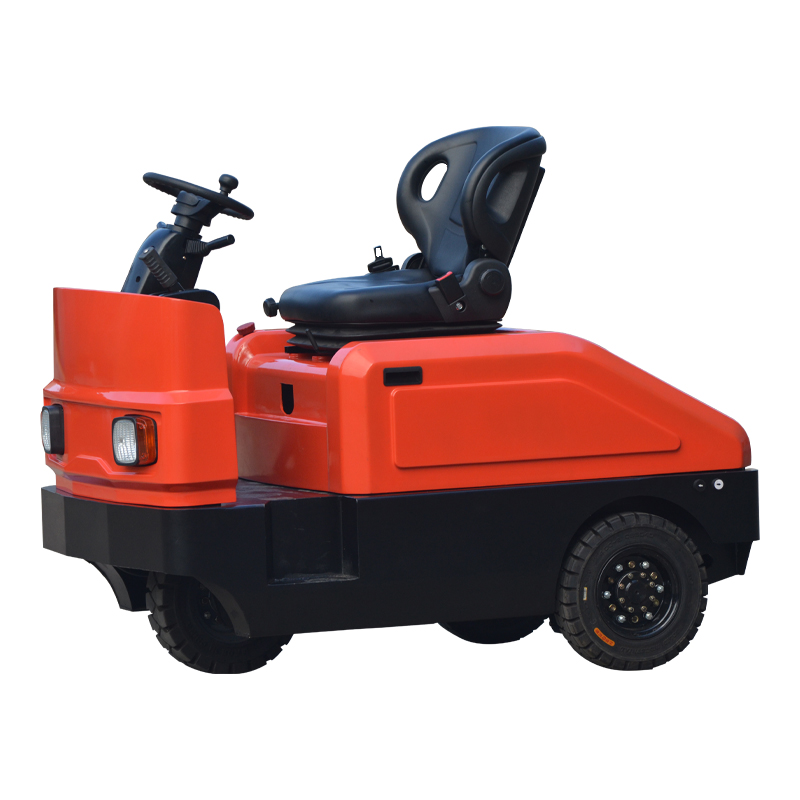

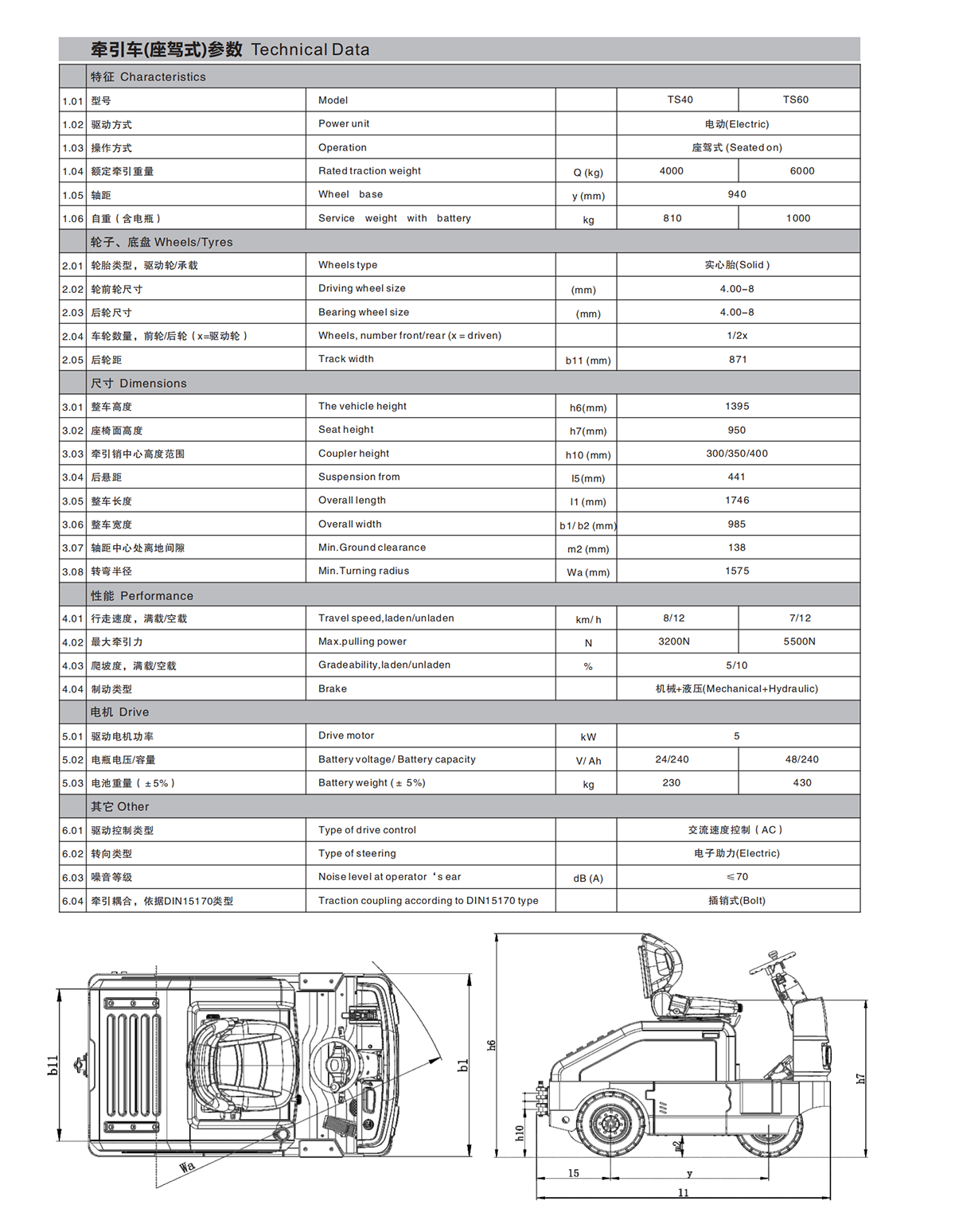

| 牵引车(座驾式)参数Technical Data | |||||||
| 特征Characteristics | |||||||
| 1.01 | 型号 | Model | TS40 | TS60 | T30 | TW10 | |
| 1.02 | 驱动方式 | Power unit | 电动(Electric) | ||||
| 1.03 | 操作方式 | Operation | 座驾式 (Seated on) | 站驾式 (Standingon) | 步行式 (Pedestrian) | ||
| 1.04 | 额定牵引重量 | Hated traction weight | Q(kg） | 4000 | 6000 | 3000 | 1000 |
| 1.05 | 轴距 | Wheel base | y(mm) | 940 | 1038 | 321 | |
| 1.06 | 白重(含电瓶) | Service weight with battery | kg | 810 | 1000 | 768 | 116 |
| 轮子、底盘Wheels/Tyres | |||||||
| 2.01 | 轮胎类型，驱动轮/承载 | Wheels type | 实心胎 (Solid) | 聚氨酯 (PU) | 橡胶轮 (Rubber wheel) | ||
| 2.02 | 轮前轮尺寸 | Driving wheel size | (mm) | 4.00-8 | φ250x75 | φ254×85 | |
| 2.03 | 后轮尺寸 | Bearing wheel size | (mm) | 4.00-8 | φ180x76 | φ75x32 | |
| 2.04 | 车轮数量，前轮/后轮(x=驱动轮） | Wheels,number front/rear (x=driven) | 1/2x | 2/1x | — | ||
| 2.05 | 后轮距 | Track width | b11(mm） | 871 | 618 | 441 | |
| 尺寸Dimensions | |||||||
| 3.01 | 整车高度 | The vehicle height | h6(mm） | 1395 | 1150 | 912/1155 | |

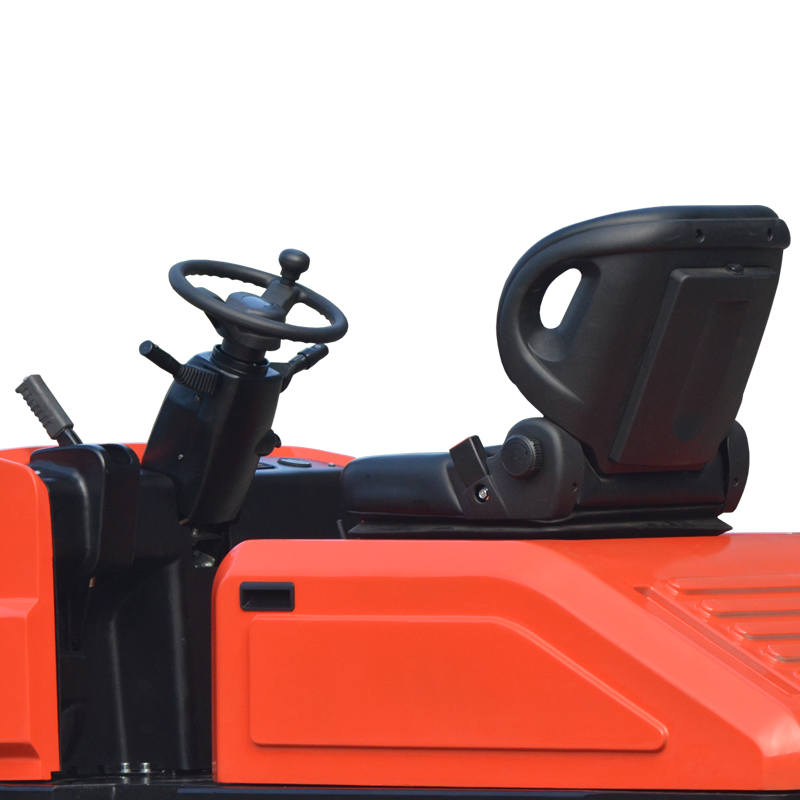

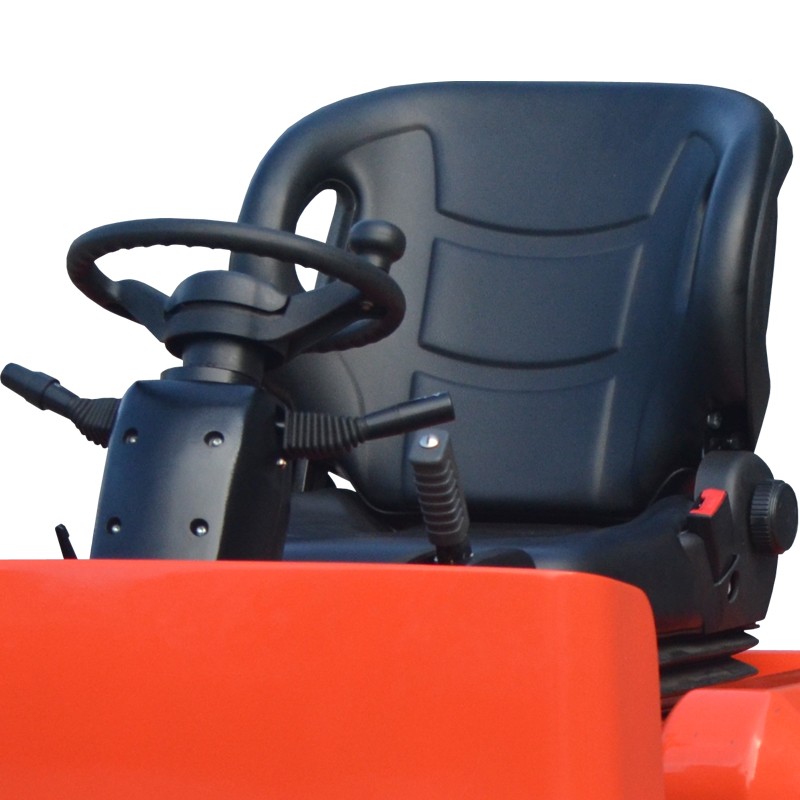

| 3.02 | 座椅面高度 | Seat height | h7(mm) | 950 | 750 | — | |
| 3.03 | 牵引销中心高度范围 | Coupler height | h10(mm | 300/350/400 | 233/328/343/438 | 275/310/34 | |
| 3.04 | 后悬距 | Suspension from | 15(mm) | 441 | — | — | |
| 3.05 | 整车长度 | Overall length | 11(mm) | 1746 | 1395 | 1184 | |
| 3.06 | 整车宽度 | Overall width | b1/b2(mm) | 985 | 808 | 526 | |
| 3.07 | 轴距中心处离地间隙 | Min.Ground clearance | m2(mm) | 138 | 65 | 67 | |
| 3.08 | 转弯半径 | Min.Turning radius | Wa(mm) | 1575 | 1242 | 850/902/916 | |
| 性能Performance | |||||||
| 4.01 | 行走速度，满载/空载 | Travel speed,laden/unladen | km/h | 8/12 | 7/12 | 6/7 | 3.8/4.2 |
| 4.02 | 最大牵引力 | Max.pulling power | N | 3200 | 5500 | 2000 | 600 |
| 4.03 | 爬坡度，满载/空载 | Gradeability.laden/unladen | 0 | 5/10 | 3/15 | 3/10 | |
| 4.04 | 制动类型 | Brake | 机械+液压(Mechanical+Hydraulic) | 电磁制动 (Electromagnetic) | |||
| 电机Drive | |||||||
| 5.01 | 驱动电机功率 | Dye motor | kW | 5 | 3 | 0.4 | |
| 5.02 | 电瓶电压/容量 | Battery voltage/Battery capacity | V/Ah | 24/240 | 48/240 | 24/210 | 24/32 |
| 5.03 | 电池重量(±5%) | Battery weight (±5%) | kg | 230 | 430 | 190 | 19.6 |
| 其 它 Other | |||||||
| 6.01 | 驱动控制类型 | Type of drive control | 交流速度控制(AC) | ||||

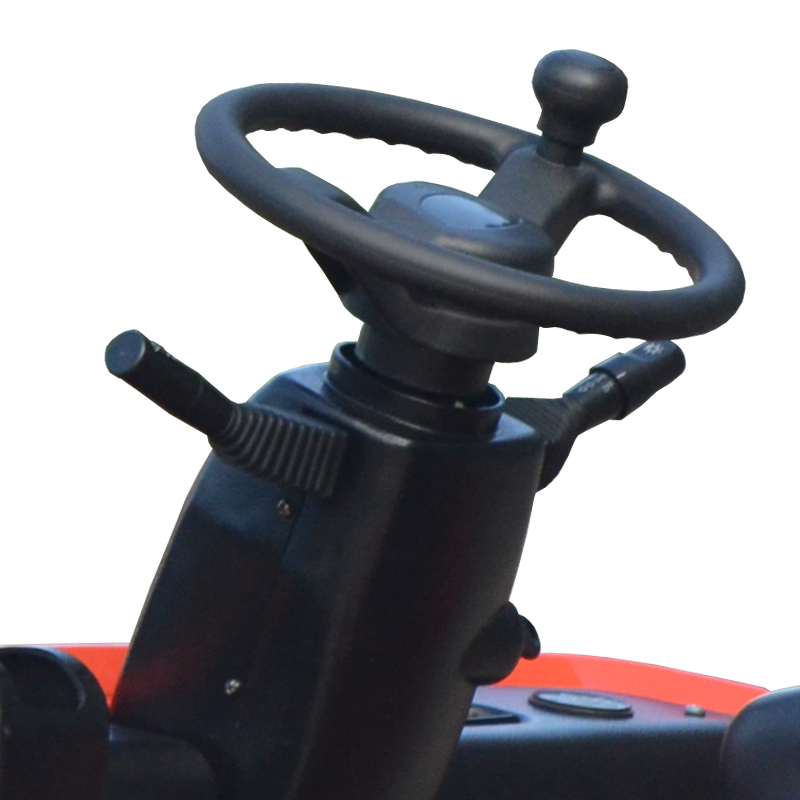

| 6.02 | 转向类型 | Type of steering | 电子助力(Electric) | — | |||
| 6.03 | 噪音等级 | Noiselevel at operator 's ear | dB(A) | ≤70 | |||

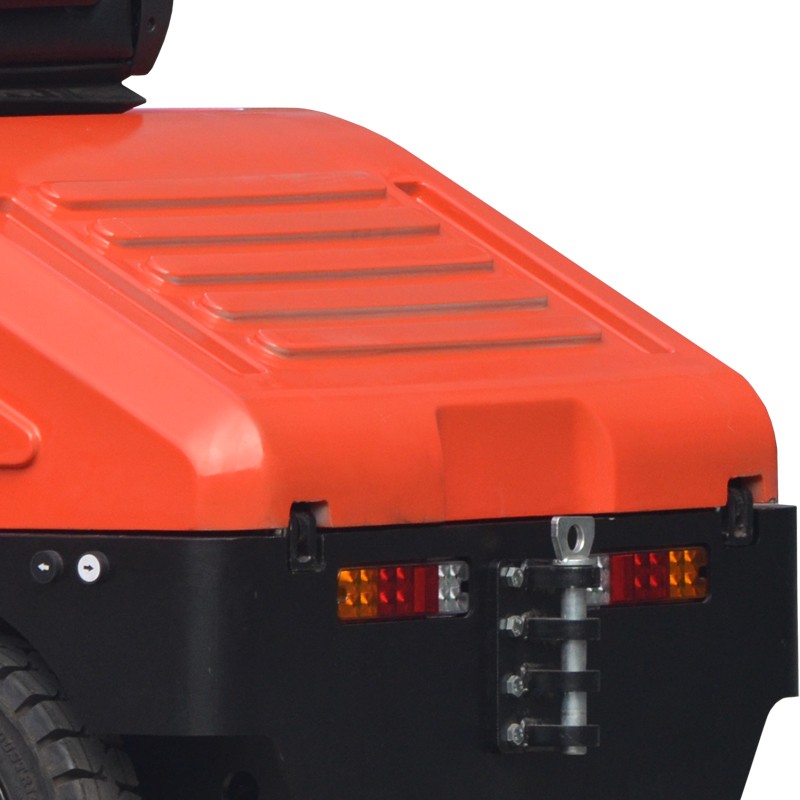

| 6.04 | 牵引耦合，依据DIN15170类型 | Traction coupling according to DIN15170 type | 插销式(Bolt) | — | |||
