产品描述

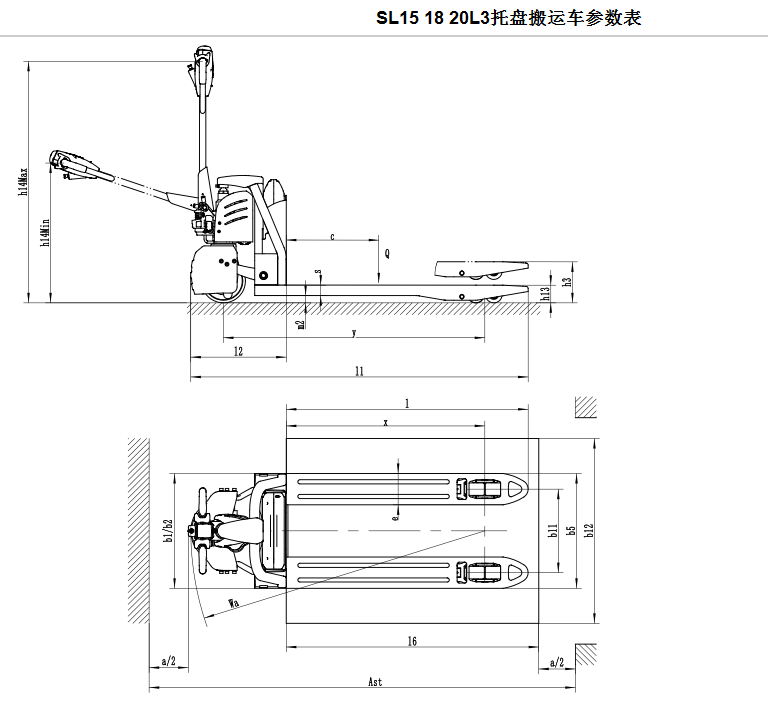

| SL15 18 20L3托盘搬运车参数表 | ||||||||||||||||
| 代号 | 公制 | |||||||||||||||
| 特征 distinguishing mark | ||||||||||||||||
| 1.1 | 品牌 | Manufacturer | 加力 | 加力 | 加力 | |||||||||||
| 1.2 | 型号 | Model designation | SL15L3 | SL18L3 | SL20L3 | |||||||||||
| 1.3 | 动力形式 | Drive unit | 电动 | 电动 | 电动 | |||||||||||
| 1.4 | 操作类型 | Operator type | 步行式 | 步行式 | 步行式 | |||||||||||
| 1.5 | 载荷 | rated capacity | Q | kg | 1500 | 1800 | 2000 | |||||||||
| 1.6 | 载荷中心距 | Load center distance | c | mm | 600 | 600 | 600 | |||||||||
| 1.8 | 前悬距 | Axle centre to fork face | x | mm | 944 | 944 | 944 | |||||||||
| 1.9 | 轴距 | Wheelbase | y | mm | 1243 | 1243 | 1243 | |||||||||
| 重量Weight | ||||||||||||||||
| 2.1 | 自重（含电瓶） | Service weight （include battery） | kg | 129 | 130 | 132 | 135 | 135 | 136 | 138 | 141 | 147 | 148 | 150 | 153 | |
| 2.2 | 轴载，满载驱动端/承载端 | Axle loading, laden driving side/loading side | kg | 600/1029 | 600/1030 | 601/1031 | 602/1033 | 630/1305 | 630/1306 | 631/1307 | 632/1309 | 649/1498 | 649/1499 | 650/1500 | 651/1502 | |
| 2.3 | 轴载，空载驱动端/承载端 | Axle loading, unladen driving side/loading side | kg | 100/29 | 100/30 | 101/31 | 102/33 | 102/33 | 102/34 | 103/35 | 104/37 | 119/28 | 119/29 | 120/30 | 121/32 | |
| 轮胎 ，底盘Types,Chassis | ||||||||||||||||
| 3.1 | 轮胎类型，驱动轮/承载轮 | Tyre type driving wheels/loading wheels | 聚氨酯 | 聚氨酯 | 聚氨酯 | |||||||||||
| 3.2 | 驱动轮尺寸（直径×宽度） | Tyre size, driving wheels（diameter×width） | mm | Ф210x75 | Ф210x75 | Ф210x75 | ||||||||||
| 3.3 | 承载轮尺寸（直径×宽度） | Tyre size, loading wheels（diameter×width） | mm | Ф80x60 | Ф80x60 | Ф80x60 | ||||||||||
| 3.4 | 平衡轮尺寸（直径×宽度） | Tyre size, caster wheels（diameter×width） | mm | Ф50x30 | Ф50x30 | Ф50x30 | ||||||||||
| 3.5 | 驱动轮，平衡轮/承载轮数量（x=驱动轮） | Wheels, number driving，caster/loading (x=drive wheels) | mm | 1x,2/4 | 1x,2/4 | 1x,2/4 | ||||||||||
| 3.7 | 后轮距，承载端 | Track width,rear,loading side | b11 | mm | 400/535 | 400/535 | 400/535 | |||||||||
| 尺寸 Dimensions | ||||||||||||||||
| 4.4 | 标配最大起升高度 | Lift height | h3 | mm | 200 | 200 | 200 | |||||||||
| 4.9 | 操作位置手柄杆最小/最大高度 | Height drawbar in driving position min./max. | h14 | mm | 740/1160 | 740/1160 | 740/1160 | |||||||||
| 4.15 | 货叉下降后叉面高度 | Lowered height | h13 | mm | 85 | 85 | 85 | |||||||||
| 4.19 | 整车长度 | Overall length | l1 | mm | 1603 | 1603 | 1603 | |||||||||
| 4.20 | 到货叉垂直面的长度 | Length to face of forks | l2 | mm | 453 | 453 | 453 | |||||||||
| 4.21 | 整体宽度 | Overall width | b1/ b2 | mm | 550/685 | 550/685 | 550/685 | |||||||||
| 4.22 | 货叉尺寸 | Fork dimensions | s/ e/ l | mm | 55/150/1150 | 55/150/1150 | 55/150/1150 | |||||||||
| 4.25 | 货叉外宽 | Distance between fork-arms | b5 | mm | 550/685 | 550/685 | 550/685 | |||||||||
| 4.32 | 轴距中心处离地间隙 | Ground clearance, center of wheelbase | m2 | mm | 35 | 35 | 35 | |||||||||
| 4.34.1 | 托盘为 1200宽 × 1000长的通道宽度 | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 1804 | 1804 | 1804 | |||||||||
| 4.34.2 | 托盘为800宽 × 1200长的通道宽度 | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 1854 | 1854 | 1854 | |||||||||
| 4.35 | 最小转弯半径 | Turning radius | Wa | mm | 1398 | 1398 | 1398 | |||||||||
| 性能参数 Performance data | ||||||||||||||||
| 5.1 | 行走速度，满载/空载 | Travel speed, laden/ unladen | km/h | 4.2/4.5 | 4.2/4.5 | 4.2/4.5 | ||||||||||
| 5.2 | 起升速度，满载/空载 | Lifting speed, laden/ unladen | m/ s | 0.027/0.033 | 0.027/0.033 | 0.038/0.060 | ||||||||||
| 5.3 | 下降速度，满载/空载 | Lowering speed, laden/ unladen | m/ s | 0.048/0.036 | 0.048/0.036 | 0.083/0.042 | ||||||||||
| 5.8 | 最大爬坡度，满载/空载 | Max. gradeability, laden/unladen | 6/15 | 6/15 | 6/15 | |||||||||||
| 5.10 | 制动类型 | Service brake type | 电磁 | 电磁 | 电磁 | |||||||||||
| 电机，动力源 Electric-engine | ||||||||||||||||
| 6.1 | 驱动电机额定功率 S2 60分钟 | Drive motor rating S2 60 min | kW | 0.75 | 0.75 | 0.75 | ||||||||||
| 6.2 | 起升电机额定功率 S3 15% | Lift motor rating at S3 15% | kW | 0.5 | 0.5 | 0.8 | ||||||||||
| 6.4 | 电瓶电压/标称容量 | Battery voltage/nominal capacity | V/Ah | 24/20 | 24/30 | 24/40 | 24/60 | 24/20 | 24/30 | 24/40 | 24/60 | 48/10 | 48/15 | 48/20 | 48/30 | |
| 6.5 | 电瓶重量 | Battery weight | kg | 6 | 7 | 9 | 12 | 6 | 7 | 9 | 12 | 6 | 7 | 9 | 12 | |
| 其他数据 Addition data | ||||||||||||||||
| 8.1 | 驱动控制类型 | Type of drive control | 直流 | 直流 | 直流 | |||||||||||
| 10.5 | 转向类型 | Steering type | 机械 | 机械 | 机械 | |||||||||||
| 10.7 | 噪音等级 | Sound pressure level at the driver’s ear | dB(A) | ≤70 | ≤70 | ≤70 | ||||||||||
