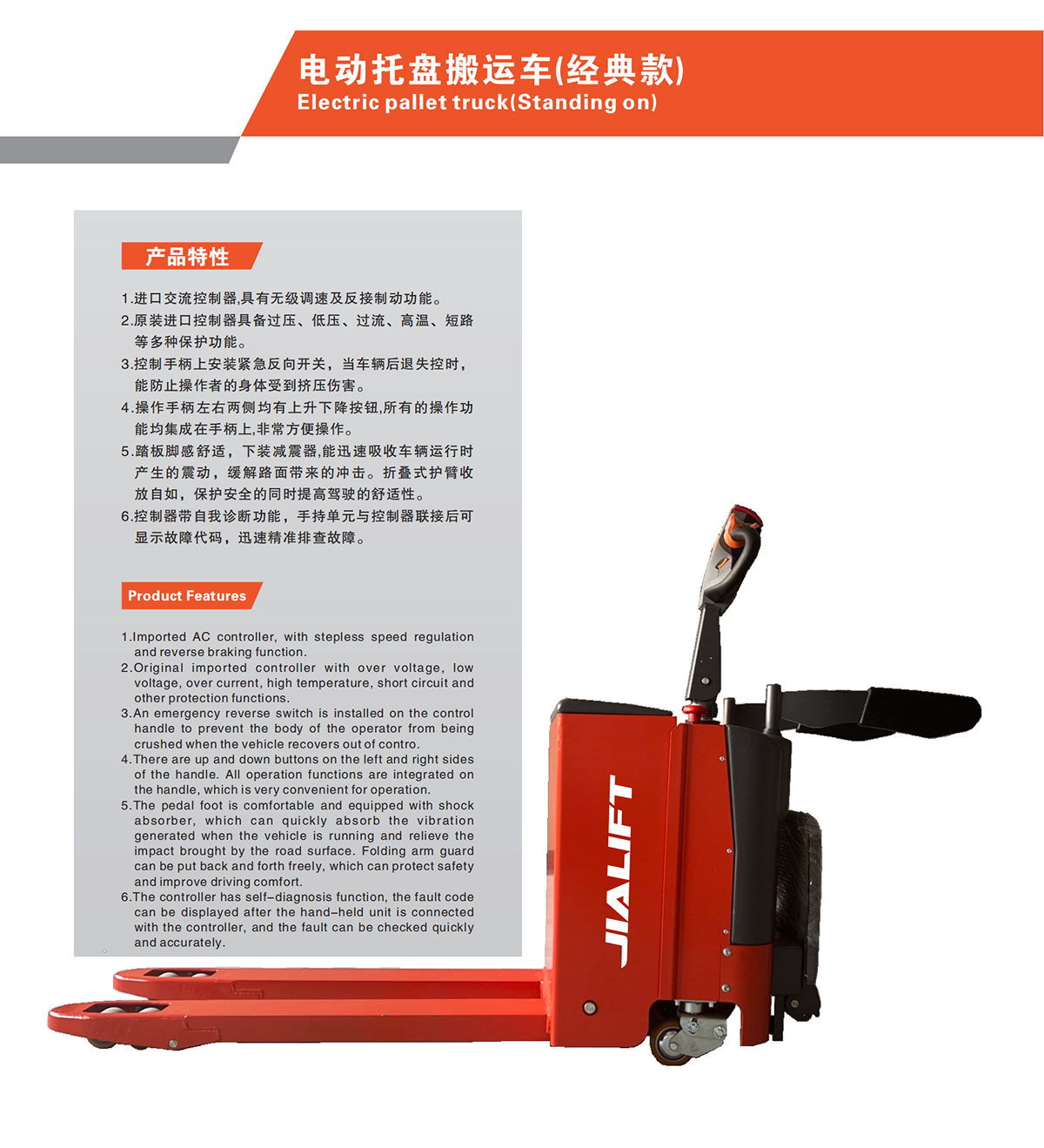

产品描述

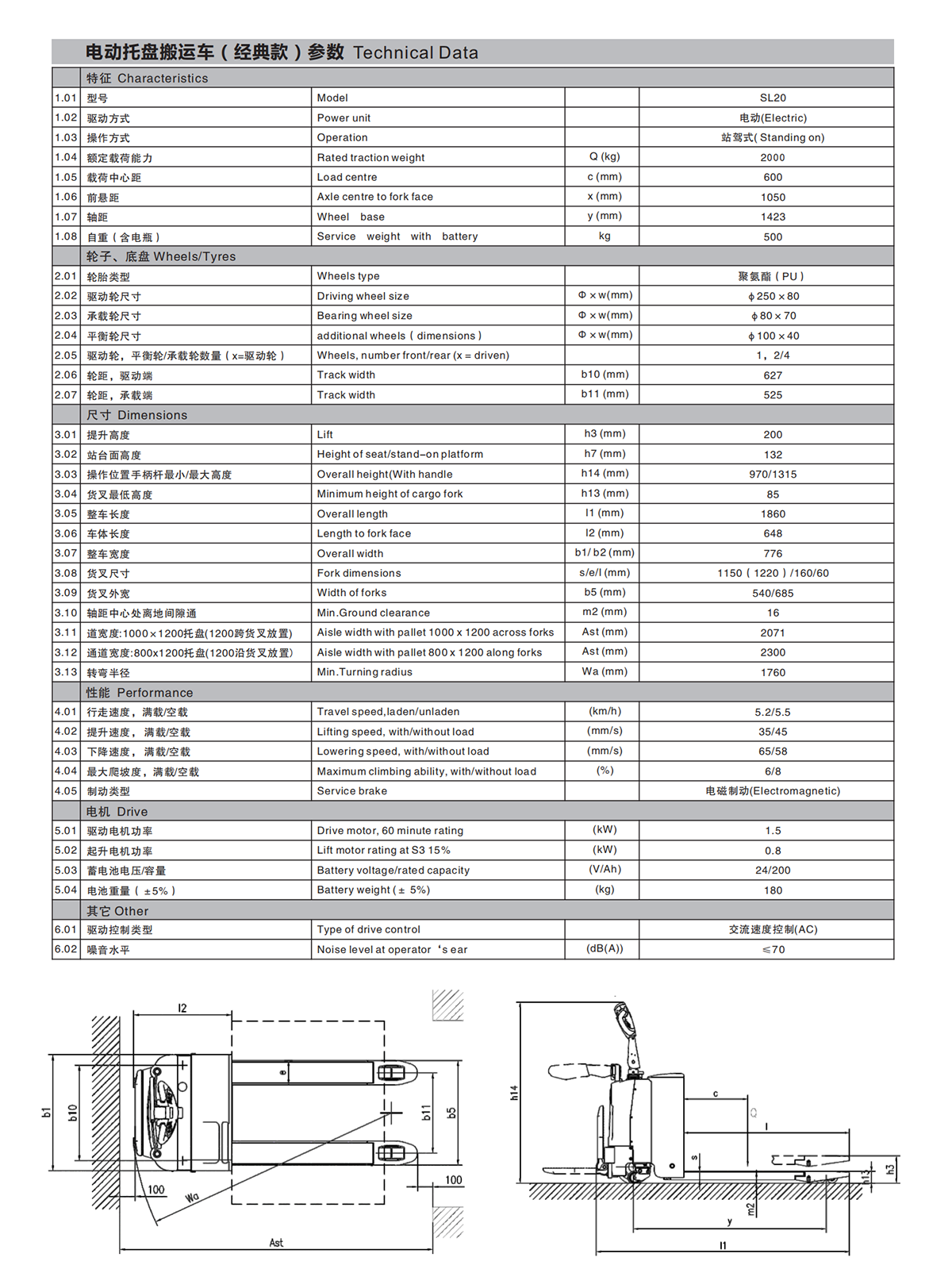

| SL20托盘搬运车参数表 | |||||
| 代号 | 公制 | ||||
| 特征 distinguishing mark | |||||
| 1.1 | 品牌 | Manufacturer | 加力 | ||
| 1.2 | 型号 | Model designation | SL20 | ||
| 1.3 | 动力形式 | Drive unit | 电动 | ||
| 1.4 | 操作类型 | Operator type | 站驾式 | ||
| 1.5 | 载荷 | rated capacity | Q | kg | 2000 |
| 1.6 | 载荷中心距 | Load center distance | c | mm | 600 |
| 1.7 | 前悬距 | Axle centre to fork face | x | mm | 1050 |
| 1.8 | 轴距 | Wheelbase | y | mm | 1423 |
| 重量Weight | |||||
| 2.1 | 自重（含电瓶） | Service weight （include battery） | kg | 500 | |
| 轮胎 ，底盘Types,Chassis | |||||
| 3.1 | 轮胎类型，驱动轮/承载轮 | Tyre type driving wheels/loading wheels | 聚氨酯 | ||
| 3.2 | 驱动轮尺寸（直径×宽度） | Tyre size, driving wheels（diameter×width） | mm | Ф250x80 | |
| 3.3 | 承载轮尺寸（直径×宽度） | Tyre size, loading wheels（diameter×width） | mm | Ф80x70 | |
| 3.4 | 平衡轮尺寸（直径×宽度） | Tyre size, caster wheels（diameter×width） | mm | Ф100x40 | |
| 3.5 | 驱动轮，平衡轮/承载轮数量（x=驱动轮） | Wheels, number driving，caster/loading (x=drive wheels) | mm | 1x,2/4 | |
| 3.6 | 前轮距，驱动端 | Track width, front,driving side | b10 | mm | 627 |
| 3.7 | 后轮距，承载端 | Track width,rear,loading side | b11 | mm | 525 |

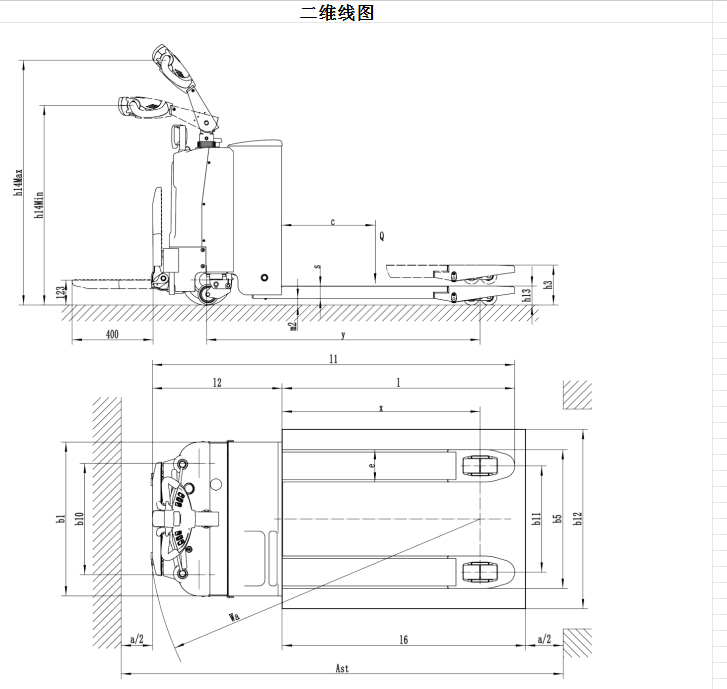

| 尺寸 Dimensions | |||||
| 4.4 | 标配最大起升高度 | Lift height | h3 | mm | 200 |
| 4.5 | 操作位置手柄杆最小/最大高度 | Height drawbar in driving position min./max. | h14 | mm | 970/1315 |
| 4.6 | 货叉下降后叉面高度 | Lowered height | h13 | mm | 85 |
| 4.7 | 整车长度 | Overall length | l1 | mm | 1860 |
| 4.8 | 到货叉垂直面的长度 | Length to face of forks | l2 | mm | 648 |
| 4.9 | 整体宽度 | Overall width | b1/ b2 | mm | 776 |
| 4.10 | 货叉尺寸 | Fork dimensions | s/ e/ l | mm | 60/160/1150 |
| 4.12 | 货叉外宽 | Distance between fork-arms | b5 | mm | 540/685 |
| 4.13 | 轴距中心处离地间隙 | Ground clearance, center of wheelbase | m2 | mm | 16 |
| 4..14 | 最小直角搬运通道宽度，踏板收起/放下(托盘1000×1200,1000沿货叉放置) | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2071/2471 |
| 4..15 | 最小直角搬运通道宽度，踏板收起/放下(托盘800×1200,1200沿货叉放置) | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 2300/2700 |
| 4.16 | 最小转弯半径 ，踏板收起/放下 | Turning radius | Wa | mm | 17602160 |
| 性能参数 Performance data | |||||
| 5.1 | 行走速度，满载/空载 | Travel speed, laden/ unladen | km/h | 5.2/5.5 | |
| 5.2 | 起升速度，满载/空载 | Lifting speed, laden/ unladen | m/ s | 0.035/0.045 | |
| 5.3 | 下降速度，满载/空载 | Lowering speed, laden/ unladen | m/ s | 0.065/0.058 | |
| 5.4 | 最大爬坡度，满载/空载 | Max. gradeability, laden/unladen | % | 6/8 | |
| 5.5 | 制动类型 | Service brake type | 电磁 | ||
| 电机，动力源 Electric-engine | |||||
| 6.1 | 驱动电机额定功率 S2 60分钟 | Drive motor rating S2 60 min | kW | 1.5 | |
| 6.2 | 起升电机额定功率 S3 15% | Lift motor rating at S3 15% | kW | 0.8 | |
| 6.3 | 电瓶电压/标称容量 | Battery voltage/nominal capacity | V/Ah | 24/200 | |
| 6.4 | 电瓶重量 | Battery weight | kg | 180 | |
| 其他数据 Addition data | |||||
| 8.1 | 驱动控制类型 | Type of drive control | 交流 | ||
| 8.2 | 转向类型 | Steering type | 机械 | ||
| 8.3 | 噪音等级 | Sound pressure level at the driver’s ear | dB(A) | ≤70 | |
