产品描述

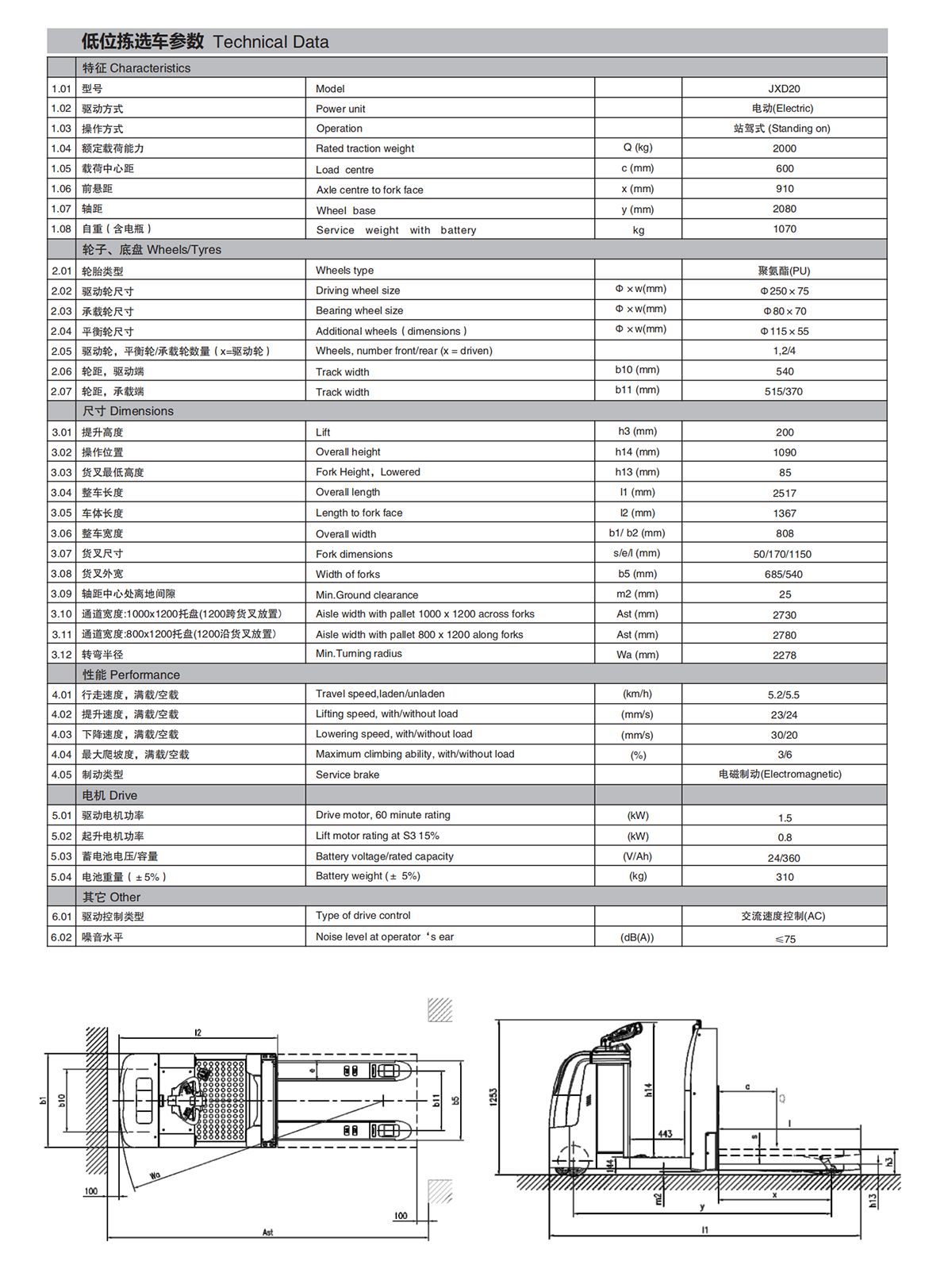

| 低位拣选车参数Technical Data | ||||
| 特征Characteristics | ||||
| 1.01 | 型号 | Model | JXD20 | |
| 1.02 | 驱动方式 | Power unit | 电动(Electnic) | |
| 1.03 | 操作方式 | Oporation | 站鹭式(Standing on | |
| 1.04 | 额定载荷能力 | Rated tracfion weight | Q(g) | 200 |
| 1.05 | 载荷中心距 | Load centre | c(mm) | 600 |
| 1.06 | 前悬距 | Axle centre to lork face | x(mm) | 910 |
| 1.07 | 轴距 | Wheel base | y(mm) | 2080 |
| 1.08 | 白重(含电瓶) | Service weight with battery | kg | 1070 |
| 轮子、底盘Wheels/Tyres | ||||
| 2.01 | 轮胎类型 | Wheets type | 聚氨酯(PU) | |
| 2.02 | 驱动轮尺寸 | Driving wheel size | φxw(mm) | φ250×75 |
| 2.03 | 承载轮尺寸 | Bearing wheel size | φxw(mm) | φ80x70 |
| 2.04 | 平衡轮尺寸 | Additional wheels(dimensions) | φxw(mm | φ115×55 |
| 2.05 | 驱动轮，平衡轮承载轮数量(x=驱动轮) | Wheeks,number front/rear (x=driven) | 1,2/4 | |
| 2.06 | 轮距，驱动端 | Track widih | b10(mm) | 540 |
| 2.07 | 轮距，承载端 | Track width | b11 (mm) | 515/370 |

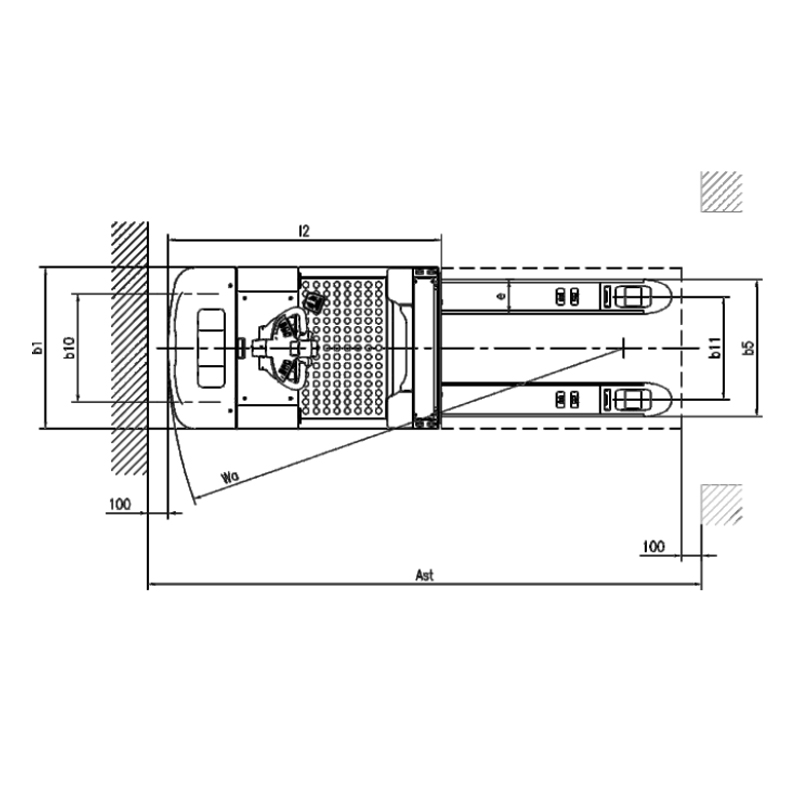

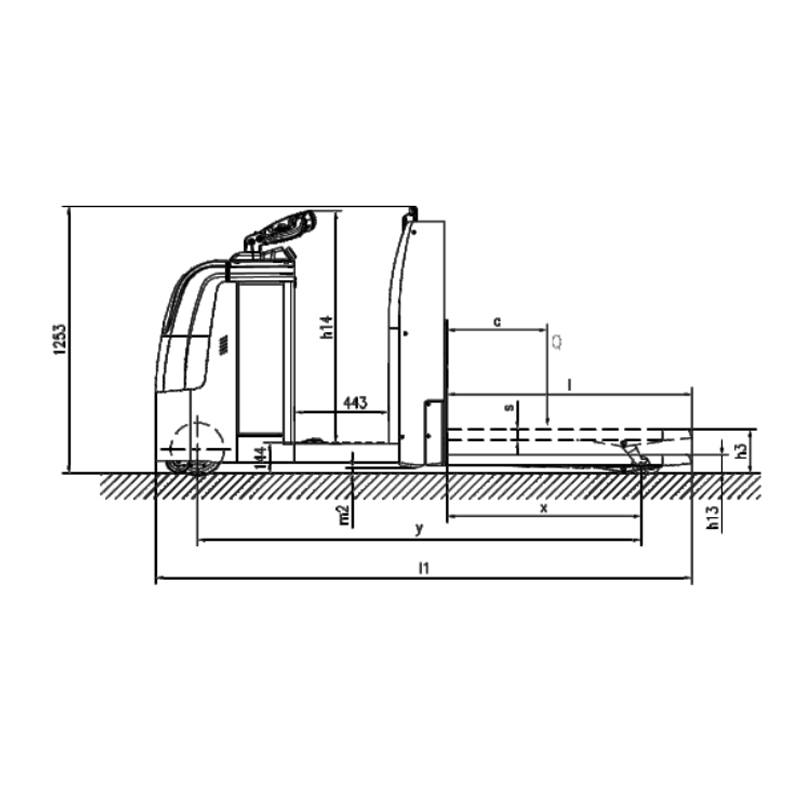

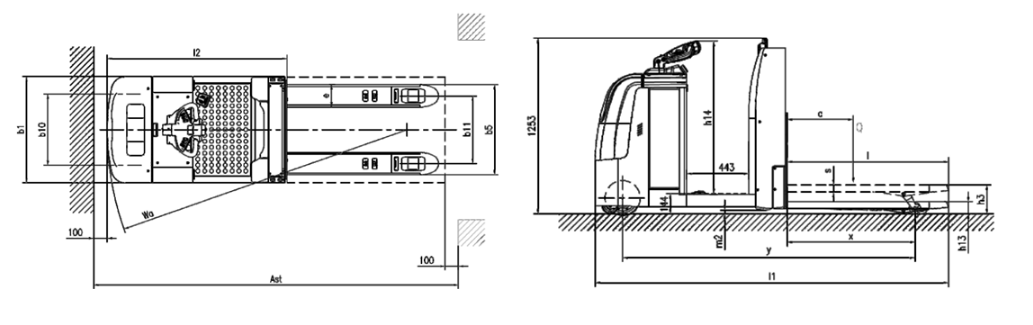

| 尺寸Dimensions | ||||
| 3.01 | 提升高度 | Lit | h3 (mm) | 200 |
| 3.02 | 操作位置 | Ovemll height | h14(mm) | 1090 |
| 3.03 | 货叉最低高度 | Fork Height,Lowered | h13 (mm) | 85 |
| 3.04 | 整车长度 | Owerall langth | l1(mm) | 2517 |
| 3.05 | 车体长度 | Length to fork tace | 2(mm) | 1367 |
| 3.06 | 整车宽度 | Overall width | b1/b2 (mm) | 808 |
| 3.07 | 货叉尺寸 | Fork dimensions | s/e/(mm) | 50/170/1150 |
| 3.08 | 货叉外宽 | Width of forks | b5(mm) | 685/540 |
| 3.09 | 轴距中心处离地间障 | in.Gmund ciearance | m2(mm) | 25 |
| 3.10 | 通道宽度：1000x1200托盘(1200蹄货叉放置) | Aisle widtth with pallet 1000x 1200 across forks | Ast (mm) | 2730 |
| 3.11 | 通道宽度：800x1200托盘(1200沿货叉放置) | Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2780 |
| 3.12 | 转弯半径 | Min.Tuming radius | Wa(mm) | 2278 |
| 性 能 P e f oma n c e | ||||
| 4.0 | 行走速度，满载/空载 | Travel speod,laden/unladen | (km/h) | 5.2/5.5 |
| 4.02 | 提升速座，满载/空载 | LUfting speed,with/without load | (mm's) | 23/24 |
| 4.03 | 下降速度，消载/空载 | Lowering speed,wth/without load | (mm's) | 30/20 |
| 4.04 | 最大腐坡度，满载/空载 | Maximum dimbing ability,with/without load | (%) | 36 |
| 4.05 | 制动类型 | Sarvice brake | 电磁制动(Electromagnetic) | |
| 电机Dnive | ||||
| 5.01 | 驱动电机功率 | Drve motor,60 minute rating | (kW) | 1.5 |
| 5.02 | 起升电机功率 | Litt motor rating at S315% | (W) | 0.8 |
| 5.03 | 蓄电池电压/容量 | Battery voltagv/rated capacity | (V/Ah) | 24360 |
| 5.04 | 电池重量(±5%) | Battery weight (±5%) | (kg) | 310 |
| 其 它 O th e | ||||
| 6.0 | 驱动控制类型 | Type of drive control | 交流速度控制(AC) | |
| 6.02 | 噪音水平 | Noise lovel at oporator's ear | (dB(A)) | ≤75 |
