产品描述

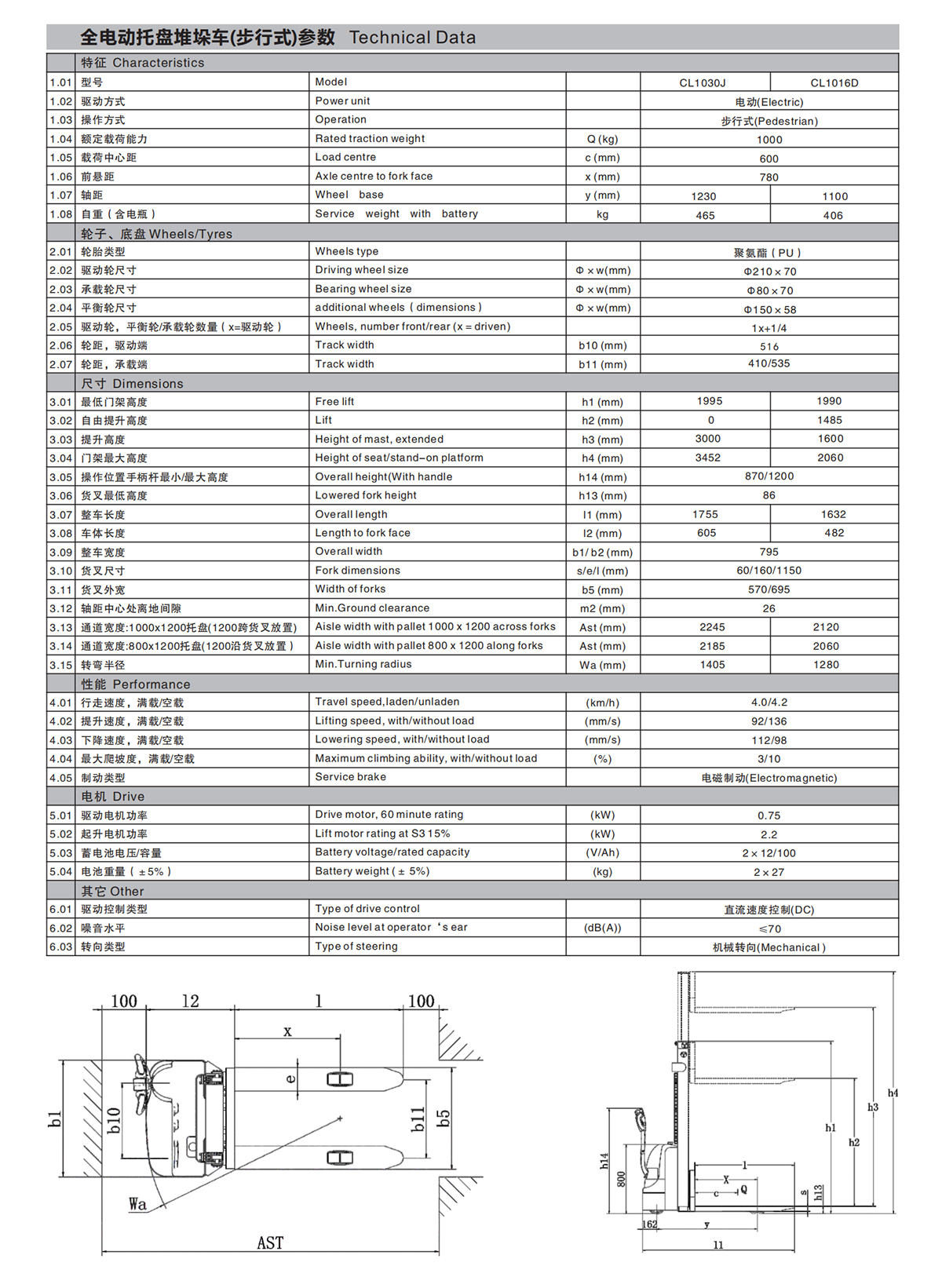

| 全电动托盘堆垛车(步行式)参数Technical Data | |||||
| 特征Characteristics | |||||
| 1.01 | 型号 | Model | CL1016D | ||
| 1.02 | 驱动方式 | Power unit | 电动(Electric) | ||
| 1.03 | 操作方式 | Operation | 步行式(Pedestrian) | ||
| 1.04 | 额定载荷能力 | Rated traction weight | Q(kg) | 1000 | |
| 1.05 | 载荷中心距 | Load centre | c(mm) | 600 | |
| 1.06 | 前悬距 | Ayle centre to fork face | x(mm) | 780 | |
| 1.07 | 轴距 | Wheel base | y(mm | 1100 | |
| 1.08 | 自重(含电瓶) | Service weight with battery | kg | 406 | |
| 轮子、底盘Wheels/Tyres | |||||
| 2.01 | 轮胎类型 | Wheels type | 聚氨酯(PU) | ||
| 2.02 | 驱动轮尺寸 | Driving wheel size | φ×w(mm) | φ210×70 | |
| 2.03 | 承载轮尺寸 | Bearing wheel size | φ×w(mm) | φ80×70 | |
| 2.04 | 平衡轮尺寸 | additional wheels(dimensions) | φ×w(mm) | φ150×58 | |
| 2.05 | 驱动轮，平衡轮/承载轮数量(x=驱动轮) | Wheels,number front/rear (x =driven) | 1x+1/4 | ||
| 2.06 | 轮距，驱动端 | Track width | b10(mm) | 516 | |
| 2.07 | 轮距，承载端 | Track width | b11(mm) | 410/535 | |
| 尺寸Dimensions | |||||
| 3.01 | 最低门架高度 | Free lift | h1(mm) | 1990 | |
| 3.02 | 自由提升高度 | Lift | h2(mm) | 1485 | |
| 3.03 | 提升高度 | Height of mast,extended | h3(mm) | 1600 | |
| 3.04 | 门架最大高度 | Height of seat/stand-on platform | h4(mm) | 2060 | |
| 3.05 | 操作位置手柄杆最小/最大高度 | Overall height(With handle | h14(mm) | 870/1200 | |
| 3.06 | 货叉最低高度 | Lowered fork height | h13(mm) | 86 | |
| 3.07 | 整车长度 | Overall length | l1(mm) | 1632 | |
 3.08 | 车体长度 | Length to fork face | l2(mm) | 482 | |
| 3.09 | 整车宽度 | Overall width | b1/b2(mm) | 795 | |
| 3.10 | 货叉尺寸 | Fork dimensions | s/e/l(mm) | 60/160/1150 | |
| 3.11 | 货叉外宽 | Width of forks | b5(mm) | 570/695 | |
| 3.12 | 轴距中心处离地间隙 | Min Ground clearance | m2(mm) | 26 | |
| 3.13 | 通道宽度：1000x1200托盘(1200跨货叉放置) | Aisle width with pallet 1000x1200 across forks | Ast(mm) | 2120 | |
| 3.14 | 通道宽度：800x1200托盘(1200沿货叉放置) | Aisle width with pallet 800 x1200 along forks | Ast(mm) | 2060 | |
| 3.15 | 转弯半径 | Min.Turning radius | Wa(mm) | 1280 | |
| 性能Performance | |||||
| 4.01 | 行走速度，满载/空载 | Travel speed,laden/unladen | (km/h) | 4.0/4.2 | |
| 4.02 | 提升速度，满载/空载 | Lifting speed,with/without load | (mm/s) | 92/136 | |
| 4.03 | 下降速度，满载/空载 | Lowering speed,with/without load | (mm/s) | 112/98 | |
| 4.04 | 最大爬坡度，满载/空载 | Maximum climbing ability,with/without load | (%) | 3/10 | |
| 4.05 | 制动类型 | Service brake | 电磁制动(Electromagnetic) | ||
| 电机Drive | |||||
| 5.01 | 驱动电机功率 | Drive motor,60 minute rating | (kW) | 0.75 | |
| 5.02 | 起升电机功率 | Lift motor rating at S315% | (kW) | 2.2 | |
| 5.03 | 蓄电池电压/容量 | Battery voltage/rated capacity | (V/Ah) | 2×12/100 | |
| 5.04 | 电池重量(±5%) | Battery weight (±5%) | (kg) | 2×27 | |
| 其它Other | |||||
| 6.01 | 驱动控制类型 | Type of drive control | 直流速度控制(DC) | ||
| 6.02 | 噪音水平 | Noise level at operator's ear | (dB(A)) | ≤70 | |
| 6.03 | 转向类型 | Type of steering | 机械转向(Mechanical) | ||
